点击放大查看

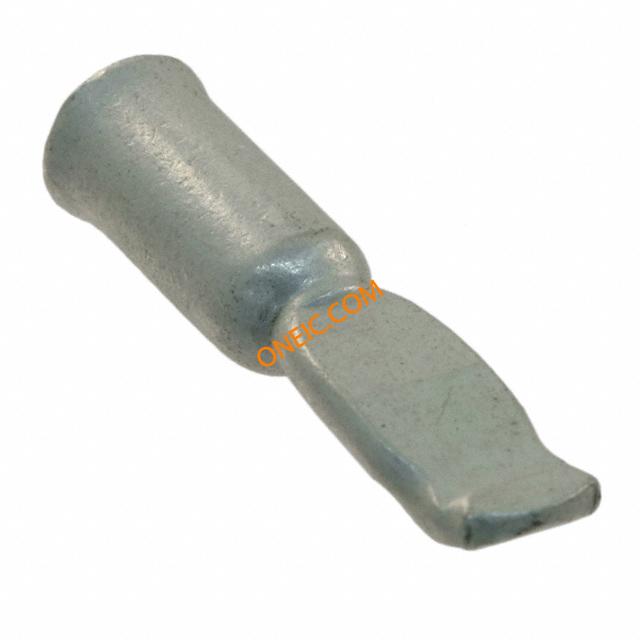

647878-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN CONTACT 8AWG COLD-HEADED Contact Battery Connector 50A 8AWG Heavy Duty Power Connectors CONTACT 50&75 SRIES 8 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact50 AMP SeriesWire Size (AWG/CM) = 8 AWGCurrent = 50 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONTACT, 8AWG, CRIMP SERIES50&75CONTACT,8AWG 50 / 75 Series 8 AWG Closed Barrel Amp Power Contact TE Connectivity AMP Power 系列 公 压接接线端子, 压接, 镀银触点 SERIES 50 & 75 CONTACT,8 AWG |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 50 A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 深度 | 8.2 mm | 间距 | Not Required mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 导线线规 | 8 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 安装样式 | Cable |
| 触头材料 | Copper | 壳体材料 | Not Required |
| 总长度 | 31.24 mm | 第一触头极性 | :- |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 线规或范围 - AWG | 8 | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | :50 AMP | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :50 AMP Series Power Connectors |
