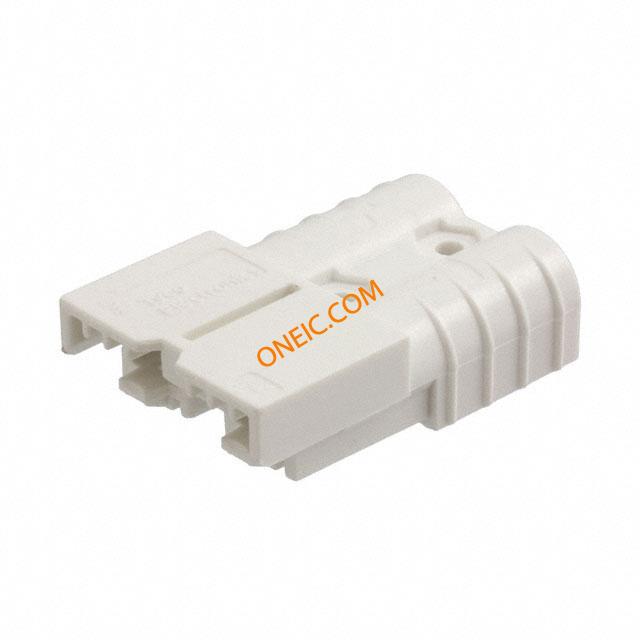

点击放大查看
1604342-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS Crimp ST Bulk Power Connectors CONN HOUSING 2POS WHITE Heavy Duty Power Connectors SER 50 POWER CONN Conn Housing RCP 2 POS Crimp ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Finger Probe Resistant ConnectorCurrent = 50 Amps.Housing Color = WhiteSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SER50POWERCONN,FPR SER 50 POWER CONN,FPR |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bag |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 50 A | ||
机械参数
| 颜色 | White | 宽度 | 35.05 mm [ 1.38 in ] |
| 高度 | 17.19 mm [ .6767 in ] | 长度 | 55.98 mm [ 2.2 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 电缆类型 | 分离式导线 |
| 导线线规 | 12 – 6 | 端接方式 | Crimp |
| 触头类型 | Non Gendered | 安装类型 | Straight |
| 电缆直径 | 6088 – 27629 | 连接器类型 | Non Gendered |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 150 |
| 面板安装类型 | 不带 | 主要材料 | HighCurrent |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 绝缘直径 | 10 mm [ .394 in ] |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 制造商全称 | 50AMPPowerSeries |
| 产品子类型 | 护套 | 应用细节 | Power |
