点击放大查看

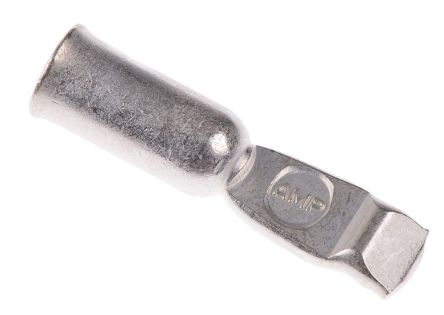

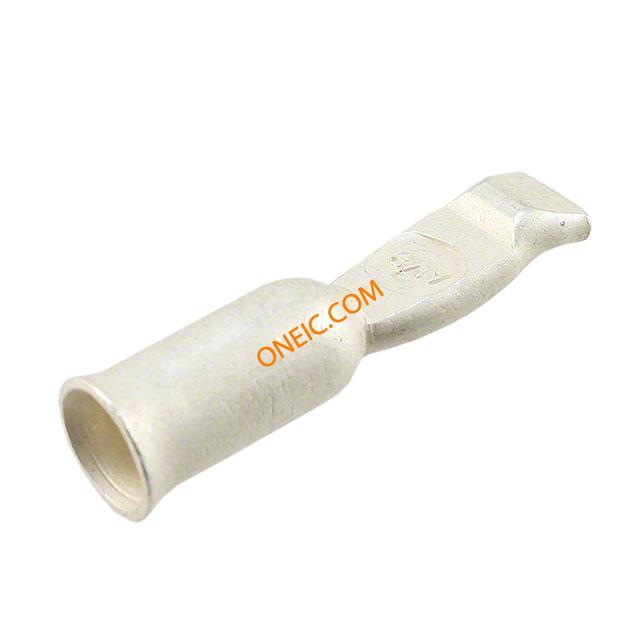

647877-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece/Bulk Power Connectors CONN CONTACT 6AWG COLD-HEADED Contact Battery Connector 50A 6AWG Heavy Duty Power Connectors CONTACT 50&75 SRIES 6 AWG Contact PIN Crimp ST Cable Mount Loose Piece/Bulk Product Highlights:Contact50 AMP SeriesWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES50&75CONTACT,6AWG TE Connectivity AMP Power 系列 公 压接接线端子, 压接, 镀银触点 SERIES 50 & 75 CONTACT,6 AWG |
| 分类 |
商业参数
| 其他名称 | 6478771 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 24 V | 供电电压 | 600 |
| 最大额定电流 | 50 A | 连接器类型 - 电压输入 | 冷间锻造 |
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 6 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 闭式压线筒 |
| 插针或插孔 | Non-Gendered | 释放力 | 带有 |
| 电缆直径 | 14mm² | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 外壳材料（壳体） | 镍 |
| 插入件材料 | 铜合金 | 触头材料 | Copper |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 端接样式 | 插针/插座 | 接触件端接 | Crimp |
| 接触镀层厚度 | 50 µm [ 1.27 µin ] | 线规或范围 - AWG | 6 |
| 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | AMP Power | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
相关型号

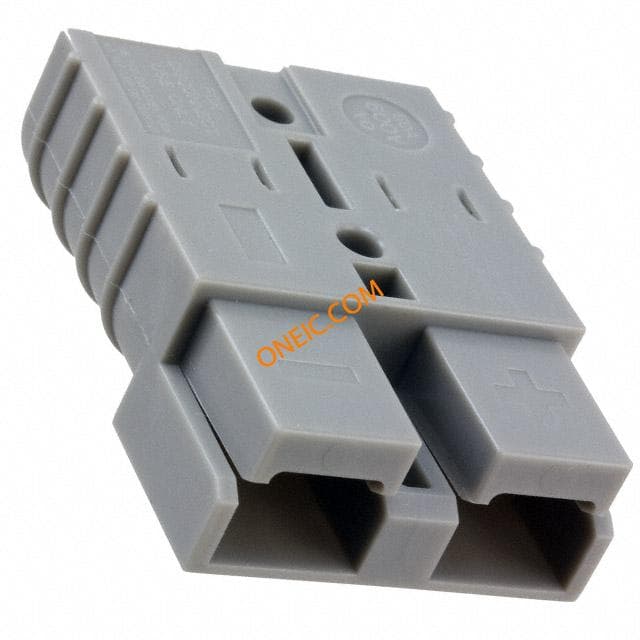

647845-4
te connectivity / amp
Conn Housing RCP 2 POS ST Bulk Power Connectors CONN HOUSING 2POS GRAY Connector Battery 2 way Grey 50A Heavy Duty Power Connectors SERIES 50 HSG GRAY Conn Housing RCP 2 POS ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG AND SOCKET CONNECTOR HOUSING SERIES50HOUSING,GRAY TE Connectivity 2 路 母 电池连接器 , 50A, 600 V 交流/直流 SERIES 50 HOUSING,GRAY
647845-3
te connectivity / amp
Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Power Connectors CONN HOUSING 2POS RED Connector Battery 2 way Red 50A Heavy Duty Power Connectors SERIES 50 HSG RED Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = RedSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG AND SOCKET CONNECTOR HOUSING SERIES50HOUSING,RED TE Connectivity 2 路 母 电池连接器 , 50A, 600 V 交流/直流, 电缆安装 SERIES 50 HOUSING,RED
1604342-1
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Bulk Power Connectors CONN HOUSING 2POS BROWN Heavy Duty Power Connectors SER 50 POWER CONN Conn Housing RCP 2 POS Crimp ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Finger Probe Resistant ConnectorCurrent = 50 Amps.Housing Color = BrownSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SER50POWERCONN,FPR SER 50 POWER CONN,FPR
1604342-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Bulk Power Connectors CONN HOUSING 2POS WHITE Heavy Duty Power Connectors SER 50 POWER CONN Conn Housing RCP 2 POS Crimp ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Finger Probe Resistant ConnectorCurrent = 50 Amps.Housing Color = WhiteSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SER50POWERCONN,FPR SER 50 POWER CONN,FPR

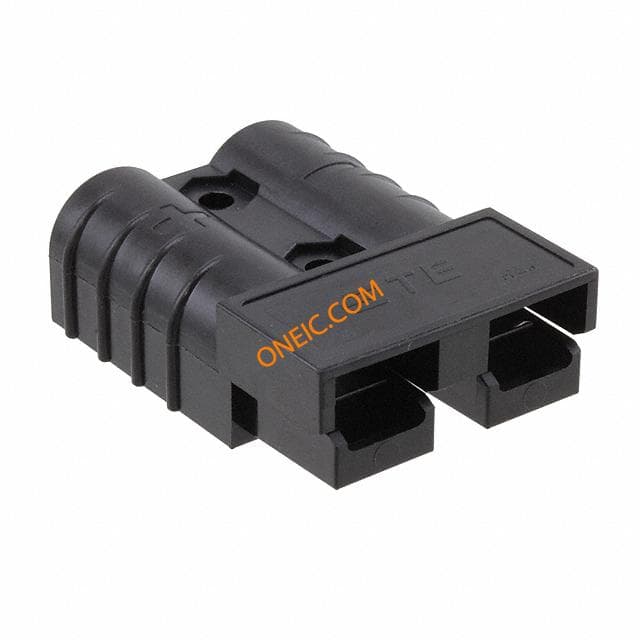

647845-7
