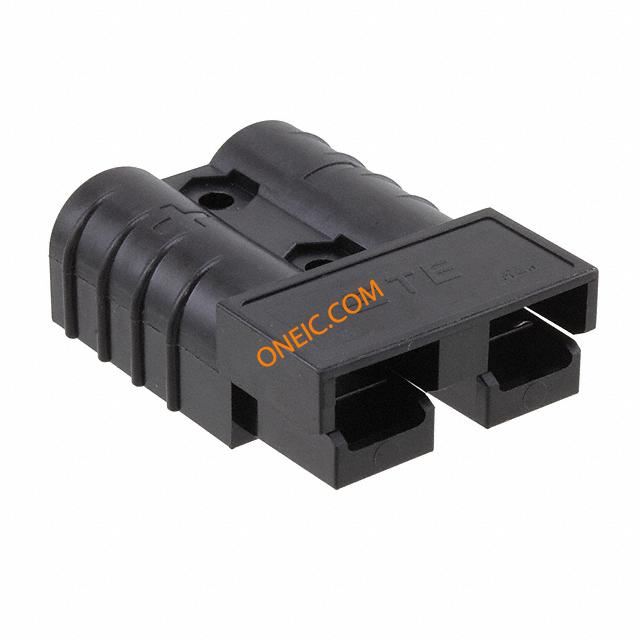

647845-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS ST Bulk Power Connectors CONN HOUSING 2POS BLACK Amp Power Series 50 Housing Black SERIES 50 HOUSING;BLACK Heavy Duty Power Connectors SERIES 50 HSG BLACK Conn Housing RCP 2 POS ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = BlackSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG AND SOCKET CONNECTOR HOUSING SERIES50HOUSING,BLACK SERIES 50 HOUSING,BLACK |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bag |
| 工厂包装数量 | 175 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V ac/dc | 最大额定电流 | 50 A |
机械参数
| 颜色 | Black | 重量 | 0.014 |
| 包装方式 | Bulk | 导线线规 | 6-12 AWG |
| 端接方式 | Crimp | 触头类型 | Non Gendered |
| 安装类型 | Straight | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 排数 | 1 | 插入力 | Female / Male |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 主要材料 | HighCurrent | 端接样式 | Crimp |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 2 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 12-6 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 50 AMP Power |
| 制造商全称 | 50AMPPowerSeries | 产品子类型 | Connectors |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | :AMP Power Series 50 Connectors |
