点击放大查看

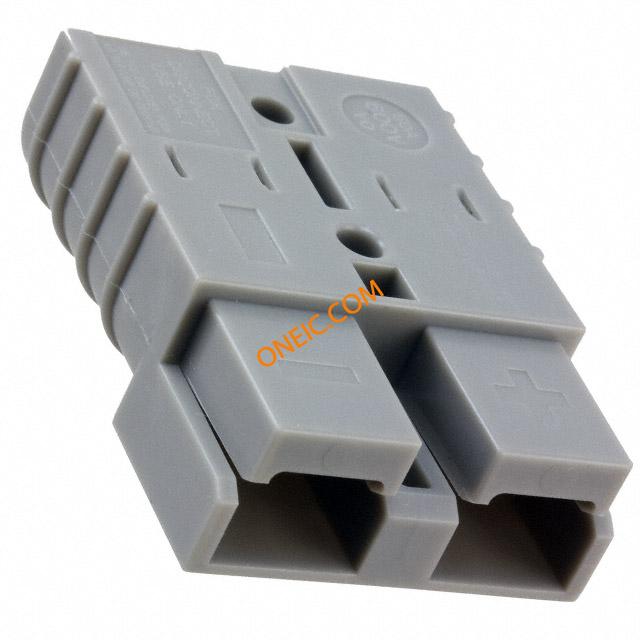

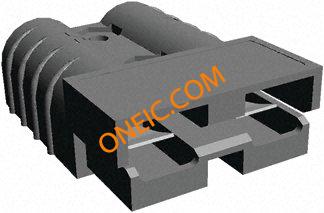

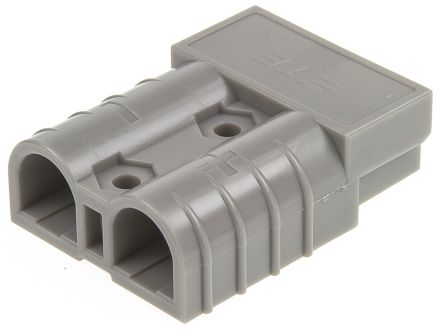

647845-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS ST Bulk Power Connectors CONN HOUSING 2POS GRAY Connector Battery 2 way Grey 50A Heavy Duty Power Connectors SERIES 50 HSG GRAY Conn Housing RCP 2 POS ST Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG AND SOCKET CONNECTOR HOUSING SERIES50HOUSING,GRAY TE Connectivity 2 路 母 电池连接器 , 50A, 600 V 交流/直流 SERIES 50 HOUSING,GRAY |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 175 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V ac/dc | 最大额定电流 | 50A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Gray | 高度 | 15.88 mm |
| 重量 | 0.014 | 包装方式 | Bulk |
| 导线线规 | 6-12 AWG | 触头类型 | Non Gendered |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 插入力 | Female / Male | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 35.05 mm |
| 端接样式 | Crimp | 触点数 | 2 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 12-6 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 50 |
| 产品子类型 | Connectors | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | :AMP Power Series 50 Connectors | ||
环境参数
| 工作温度 | -20C to 105C | ||
相关型号
647892-4
te connectivity / amp
Connector Accessories Kit Power Connectors CONN PLUG 2POS 6AWG SILVER CRIMP Heavy Duty Power Connectors SERIES 50 CONN 6 AWG GRAY Connector Accessories Kit Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONNECTOR KIT, GREY HOUSING, 2POS, 6 AWG CONTACT SRS 50 CONN KIT,GRAY,6 AWG

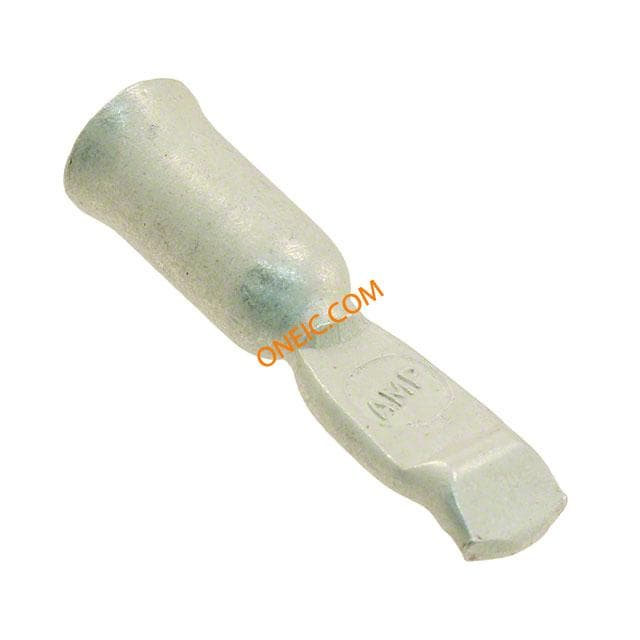

647879-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN CONTACT 10-12AWG COLD-HEAD Contact Battery Connector 50A 12-10AWG Heavy Duty Power Connectors CONTACT 50&75 SRIES 10-12 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact50 AMP SeriesWire Size (AWG/CM) = 10-12 AWGCurrent = 50 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONTACT, 12-10AWG, CRIMP SERIES50&75CONTACT,10-12AWG TE Connectivity AMP Power 系列 公 压接接线端子, 压接, 镀银触点 SERIES 50&75 CONTACT,10-12 AWG

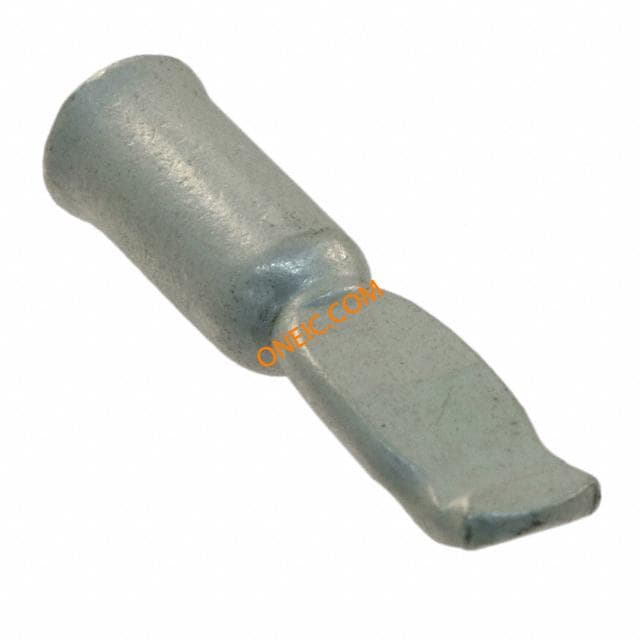

647878-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN CONTACT 8AWG COLD-HEADED Contact Battery Connector 50A 8AWG Heavy Duty Power Connectors CONTACT 50&75 SRIES 8 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact50 AMP SeriesWire Size (AWG/CM) = 8 AWGCurrent = 50 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONTACT, 8AWG, CRIMP SERIES50&75CONTACT,8AWG 50 / 75 Series 8 AWG Closed Barrel Amp Power Contact TE Connectivity AMP Power 系列 公 压接接线端子, 压接, 镀银触点 SERIES 50 & 75 CONTACT,8 AWG
1604433-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 6-8AWG Jones Plugs & Sockets 50 SERIES CONTACT 10000 Power Connectors Product Highlights:Contact50 AMP Series, 75 AMP SeriesWire Size (AWG/CM) = 6-10 AWGCurrent = 50 Amps., 75 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant
1604433-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 10-12AWG Jones Plugs & Sockets 50 SERIES CONTACT 10500 50 SER STMP&FORM CONT 10-12AWG 50 SER STMP&FORM CONT 10-12AWG Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant TERM BLADE NON-GENDR 10-12AWG
647877-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece/Bulk Power Connectors CONN CONTACT 6AWG COLD-HEADED Contact Battery Connector 50A 6AWG Heavy Duty Power Connectors CONTACT 50&75 SRIES 6 AWG Contact PIN Crimp ST Cable Mount Loose Piece/Bulk Product Highlights:Contact50 AMP SeriesWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES50&75CONTACT,6AWG TE Connectivity AMP Power 系列 公 压接接线端子, 压接, 镀银触点 SERIES 50 & 75 CONTACT,6 AWG

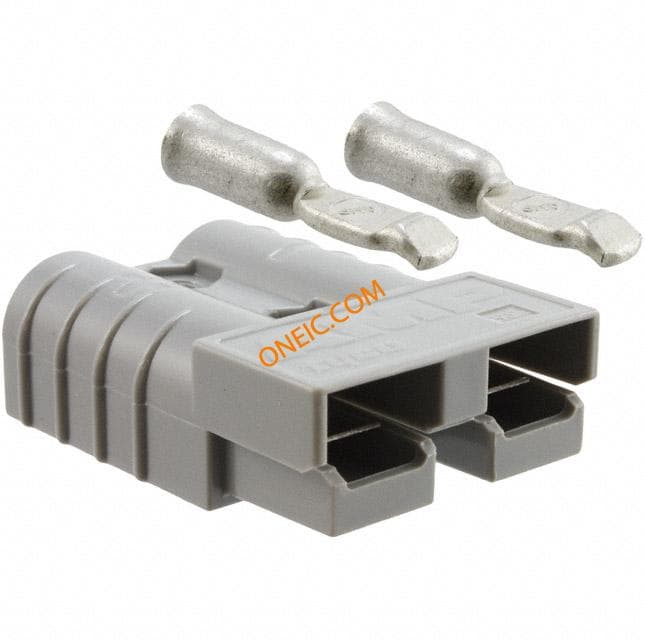

647893-4
