点击放大查看
647892-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Kit Power Connectors CONN PLUG 2POS 6AWG SILVER CRIMP Heavy Duty Power Connectors SERIES 50 CONN 6 AWG GRAY Connector Accessories Kit Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONNECTOR KIT, GREY HOUSING, 2POS, 6 AWG CONTACT SRS 50 CONN KIT,GRAY,6 AWG |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 50A |
机械参数
| 颜色 | Gray | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 6 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Assembly (Kit), Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 连接器样式 | 2 Poles | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 触点数 | :2 |
| 接触件端接 | :Crimp | 位数 | 2 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 6 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Kit | 连接器性别 | :Plug, Receptacle |
| 系列 | :AMP Power 50 | 射频系列/标准 | 647892 |
文档与媒体
相关型号

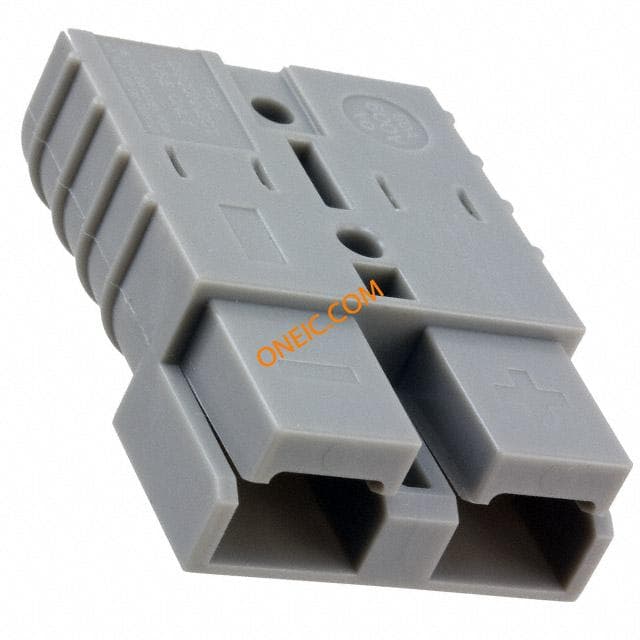

647845-4
