点击放大查看

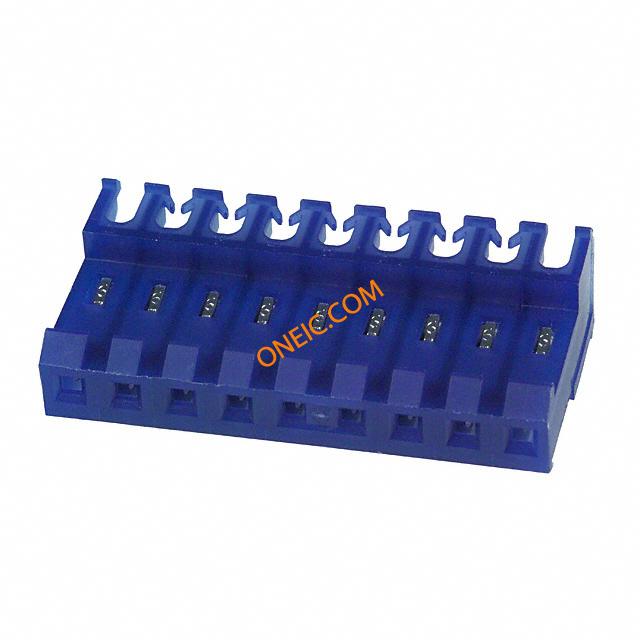

640595-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 26AWG MTA156 |
| 分类 |
商业参数
| 其他名称 | A24102 | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
机械参数
| 颜色 | Blue | 间距 | 3.96 mm |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 26 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin-Lead Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 电缆端接方式 | IDC | 触点数 | 9 |
| 位数 | 9 | 接触镀层厚度 | 80µin (2.03µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Feed Through | ||
