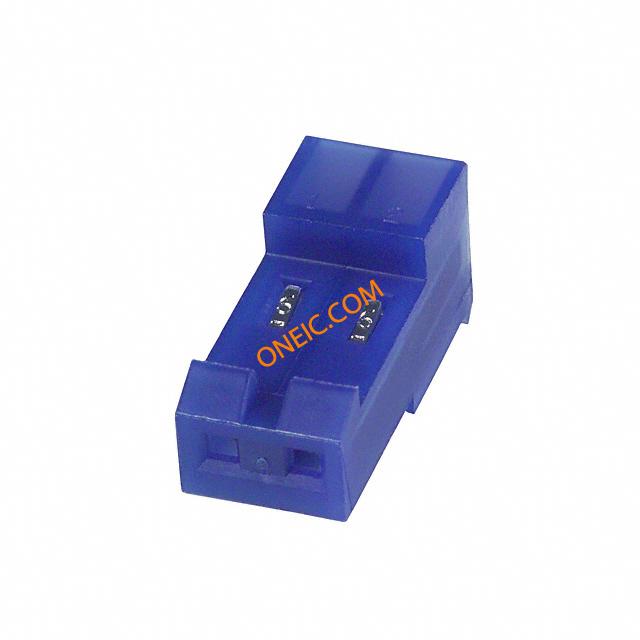

640430-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA156 Headers & Wire Housings 02P MTA156 CONN ASSY 2500 Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 CONN ASSY 26AWG BLU |
| 分类 |
商业参数
| 其他名称 | A23988 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Not applicable / RoHS non-compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 VAC | 开关功能 | Locking Ramp |
| 供电电压 | 600 | 连接器阻抗 | IDC |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Blue | 间距 | 3.96 mm |
| 高度 | 9.02 mm [ .355 in ] | 长度 | 7.92 mm [ .312 in ] |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 26 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin-Lead Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 包装数量 | 500 | 面板安装类型 | 不带 |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 端接表面处理 | 带有 | 接触件端接 | Locking Lance |
| 绝缘直径 | 2.41 mm [ .095 in ] | 位数 | 2 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 头 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 同轴 |
| 表面贴装焊盘尺寸 | Without | 接触镀层厚度 | 80µin (2.03µm) |
| 静电放电屏蔽 | 带有 | ||
产品信息
| 备注 | 肋之间的条纹可能会减少 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-156 |
| 产品特性 | Closed End | 可密封 | 否 |
| 产品子类型 | Connector Assemblies | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
