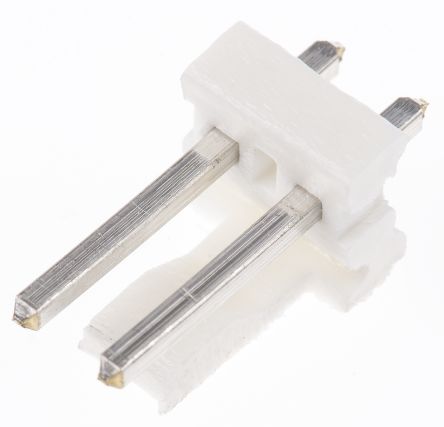

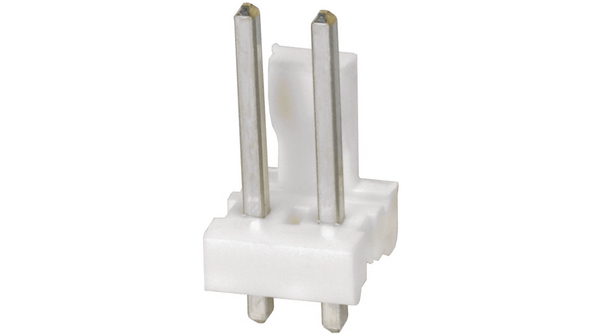

640445-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:2 Pin header straight 2P, 640445-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL/STR SN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | UL94V-0HousingFlammabilityRating,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 认证机构 | CSA,UL |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-156 Series | 额定电压 | 600 V ac |
| 开关功能 | Friction Lock | 工作电压 | :250V |
| 接触电阻 | 3 mohm | 最大额定电流 | 7A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 3.96 mm | 高度 | 13.33 mm |
| 重量 | 0.063 | 包装方式 | Bulk |
| 导线线规 | 26-18 | 方向 | straight |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :3.96mm | 引脚长度（针脚） | 0.125" |
| 柱间距 | 3.96mm | 外壳颜色 | White |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Friction Lock | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 7.92 mm |
| 包装数量 | 1 | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | socket | 插针孔直径 | 0.156" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 绝缘直径 | 0.095"(SingleWire),0.07"(MassTerminationWires) | 位数 | 2 |
| 中心触点镀层工艺 | 0.156in. | 柱体长度（配合） | 0.125in. |
| 安装孔直径 | 0.07" | 接触长度 - 配合 | 0.400" (10.16mm) |
| 端子柱长度 | 3.18 mm | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 类型 | Wire to Board |
| 连接器性别 | HDR | 系列 | MTA-156 |
| 产品特性 | IDC,Pinstrip | 制造商全称 | MTA-156Series |
| 产品子类型 | Headers | 适配器系列 | MTA-156 |
| 单元数量 | 1 | 应用细节 | Wire-to-Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
