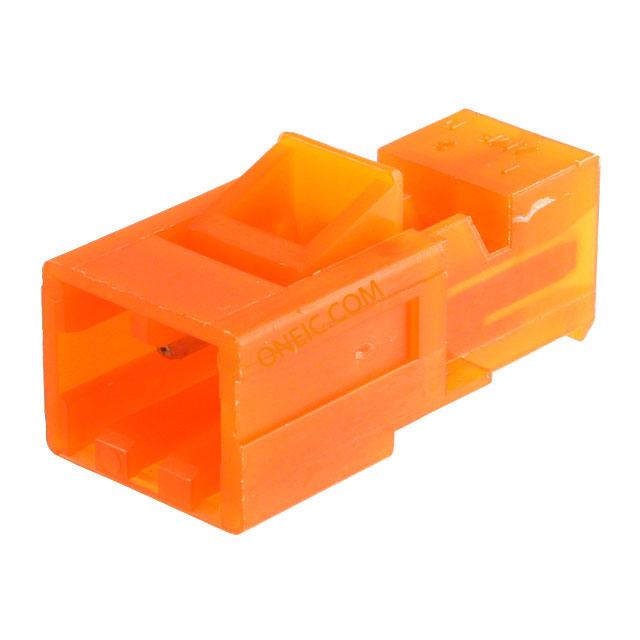

3-641435-2

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector M 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 2POS IDC 18AWG .156 Headers & Wire Housings REC 02P C/E 18AWG POSTED Conn IDC Connector M 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 2Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, PLUG, IDC, 18AWG, 2WAY 02P MTA156 CONN ASSY ORNG
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	36414352	产品类别	Headers & Wire Housings
标准包装数量	Trays	工厂包装数量	2500

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-2

电气参数

量程（°/s）	:TE - MTA-156 Series	额定电压	600 V
开关功能	Ramp Lock	接触电阻	3 mohm
最大额定电流	7 A	最小供电电压	600VAC

机械参数

颜色	Orange	深度	12.37 mm
间距	3.96 mm	高度	25.65 mm
重量	0.02	包装方式	Bulk
遮蔽类型	Yes	导线类型	Discrete or Ribbon Cable
出线方向	90Â°	导线线规	18 AWG
端接方式	IDT	触头类型	Male Pin
第二连接器	With	触点形状	Square
外壳颜色	Orange	安装类型	Free Hanging (In-Line)
连接器类型	Closed End	接触镀层	Tin
安装样式	Wire	排数	1
连接器用途	Plug	触头材料	Copper Alloy
壳体材料	Nylon	总长度	11.89 mm
安装特性	Without	面板安装类型	Without
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Pin (Male)	配接方向	Without
触点数	2	接触件端接	:IDC
位数	2	典型触点布局	3.96 [0.156]
接触镀层厚度	80µin (2.03µm)	线规或范围 - mm²	0.8-0.9Â² [18]

产品信息

备注	MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15	类型	IDC Connector
连接器性别	M	系列	MTA-156
产品特性	Closed End	制造商全称	AMP
产品子类型	MTA-156 Posted Wire-to-Wire Connectors	连接类型	Wire

环境参数

工作温度

-55C to 105C
