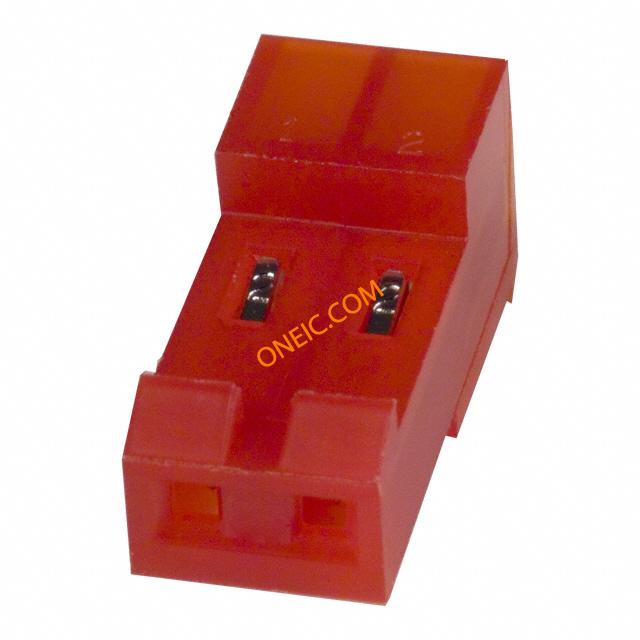

640428-2

点击放大查看

640428-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 22AWG MTA156 AMP MTA-156 Receptacle assembly tin 2P Headers & Wire Housings CLOSED W/O TABS 2P L.R. red 22 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156CONNECTORTIN,02PMTA156CONNASSY22AWGRED 02P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600接触电阻3 mohm
连接器阻抗刺破式压接 (IDC)最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Red深度9.02 mm
间距3.96 mm高度18.42 mm
长度7.92 mm [ .312 in ]密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色红色电缆类型Discrete or Ribbon Cable
导线线规22 AWG端接方式IDT
触点形式Female Socket触头类型Female Socket
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire引脚数2
排数1封装形式Receptacle
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度7.92 mm包装数量500
面板安装类型不带主要材料InterconnectSystem
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数2
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数2兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
主要用途Closed End制造商全称MTA-156
产品子类型Connector Assemblies安装类型Closed End
输出配置Free Hanging (In-Line)
