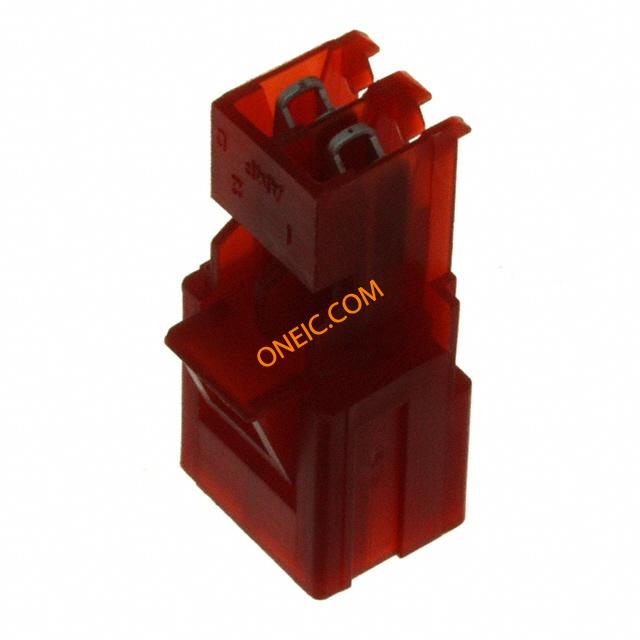

3-641437-2

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector PL 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 2POS IDC 22AWG .156 2w posted connector closed end red Conn IDC Connector PL 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 2Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156,2Position,ClosedEnd,Red Cable plug, straight 2P, 3-641437-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距直角公 IDC 连接器 , 电缆安装 02P MTA156 PSTD CONN ASSY RED
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	无铅定义	Not relevant for lead free process
CSA档案号	LR7189	标准编号	CSA, UL
CSA认证	Certified	RoHS/ELV合规状态	RoHS compliant, ELV compliant
UL阻燃等级	UL 94V-2	材料阻燃等级	UL 94V-2

电气参数

额定电压	600 V ac	极数	2
供电电压	600	接触电阻	3 mohm
连接器阻抗	刺破式压接 (IDC)	最大额定电流	7A
最小供电电压	600VAC

机械参数

颜色	Red	深度	12.37 mm
间距	3.96 mm	高度	25.65 mm
长度	11.89	密封型	Not Sealed
包装方式	Bulk	遮蔽类型	Yes
导线类型	Discrete or Ribbon Cable	壳体颜色	8.03
出线方向	90Â°	电缆类型	Discrete or Ribbon Cable
导线线规	22 AWG	方向	直角
端接方式	IDT	触点形式	Male Pin
触头类型	Male Pin	第二连接器	With
触点形状	Square	外壳颜色	Red
安装类型	Free Hanging (In-Line)	连接器类型	Closed End
接触镀层	Tin	触点时序	Without
安装样式	Cable	引脚数	2
排数	1	封装形式	Plug
壳体镀层	Nickel	连接器用途	Plug
高度（英寸）	12.37	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	Nylon
总长度	11.89 mm	安装特性	Without
包装数量	2500	面板安装类型	Without
端接排数	IDC	电缆端接方式	IDC
端接样式	插针	配接方向	Without
触点数	2	接触件端接	Locking Lance
绝缘直径	2.41 mm [ .095 in ]	位数	2
第一连接器极性	Male	兼容外壳尺寸（如TM-700等）	MTA .156 连接器组件
安装孔直径	带有	接触件表面处理 - 配合	锡
典型触点布局	3.96 [0.156]	接触镀层厚度	80µin (2.03µm)
线规或范围 - mm²	0.3-0.4Â² [22]	静电放电屏蔽	带有
护套（绝缘）厚度	50 µm [ 1.27 µin ]

产品信息

备注	MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15	类型	IDC Connector
连接器性别	PL	系列	MTA-156, AMP
产品特性	Closed End	主要用途	Closed End
制造商全称	AMP	产品子类型	MTA-156 Posted Wire-to-Wire Connectors
放大器类型	11.89	连接类型	Wire
安装类型	Closed End	输出配置	Free Hanging (In-Line)
应用细节	Power

环境参数

测试温度

标准件 - 非灼热丝

工作温度

+105°C
