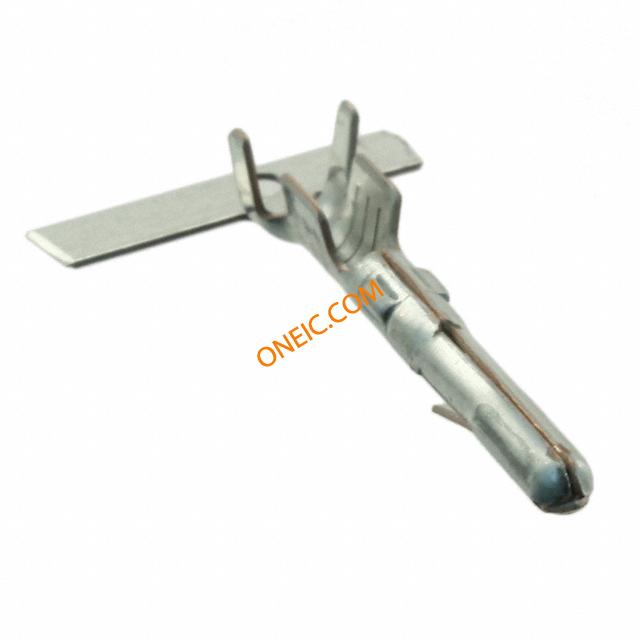

61118-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 20-14AWG M-N-L PRE-TIN Mate-n-lok pin contact,0.50-2.00mm² Power to the Board PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-lokpincontact,0.50-2.00mm² TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡镀镍触点 CMNL PIN 20-14 TPPHBZ |
| 分类 |
商业参数
| 其他名称 | A100719CT | 产品类别 | Power to the Board |
| 标准包装数量 | 5,000 | 工厂包装数量 | 5000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 接触电阻 | 4mΩ | 最大额定电流 | 13 A |
机械参数
| 镀层 | 预镀锡 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 触点形状 | Round | 安装类型 | 开式压线筒 |
| 插针或插孔 | Pin | 电缆直径 | 2mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin Over Nickel |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 5000 | 端接排数 | 压接 |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 3.3 mm [ .13 in ] | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 接触件表面处理 - 配合 | 预镀锡 | 法兰上方插针尺寸 | 2.13 mm [ .084 in ] |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 连接器性别 | PIN | 系列 | MATE-N-LOK |
| 产品子类型 | Contacts | 应用细节 | Power |
| 适用产品/相关产品 | WiretoBoard | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
| 可用温度范围 | -55to+105°C | 结工作温度 | 105°C |
