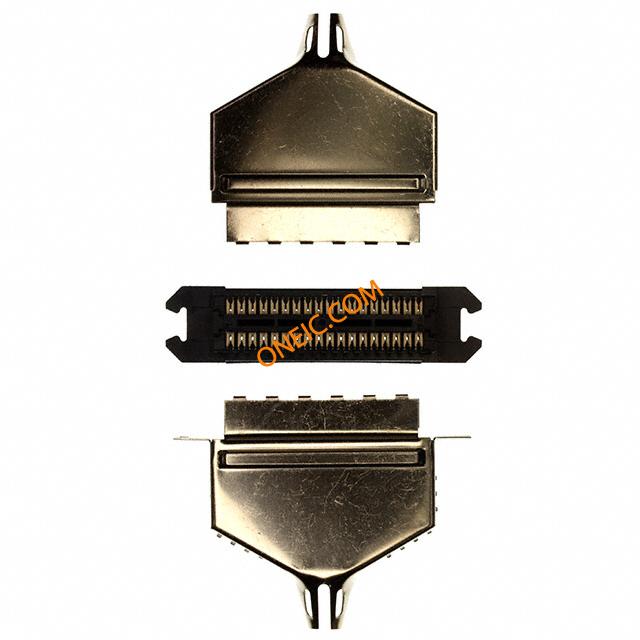

554950-2

制造商	TE Connectivity Ltd.
描述	Connector Accessories Connector Kit Plug 36 POS Individual 2.16 [.085] IDC Connectors PLUG KIT,36 POSN,BAIL LK,SHLD Conn IEEE 488 PL 36 POS 2.16mm IDT ST Cable Mount 36 Terminal 1 Port Bag Conn IEEE 488 PL 36 POS 2.16mm IDT ST Cable Mount 36 Terminal 1 Port Bag Product Highlights:Connector KitNumber of Positions = 36Standard ProfilePlugShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
分类	连接器解决方案圆形连接器工业圆形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	168 Days	子类别	Connector Interface
产品类别	Connectors	标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

连接器阻抗

释放锁

机械参数

颜色	Black	间距	2.16 mm [ .085 in ]
包装方式	Bag	屏蔽	是
出线方向	180Â°	电缆类型	7 Strand, Solid
铜缆类型	B	屏蔽类型	Yes
端接方式	IDC	外壳表面处理	Bright
第二连接器	With	安装类型	Free Hanging (In-Line)
外壳镀层	Bright Nickel	连接器类型	Plug
接触镀层	Gold over Nickel	安装样式	标准
排数	2	连接器样式	Center Strip Contacts
插入件材料	铜合金	锁定特性	Bail Lock
外形（宽 x 高）	Standard	屏蔽材料	Carbon Steel
触头材料	Copper Alloy	壳体材料	Thermoplastic
包装数量	Individual Kit	面板安装类型	Without
线规 - 端部	26 – 24	绝缘直径	1.14 mm [ .045 in ]
位数	36	接触镀层厚度	30µin (0.76µm)
线规或范围 - AWG	26 – 24	线规或范围 - mm²	0.20Â² [24]
线缆外径（最大）	6.35 – 12.7 mm [ .25 – .5 in ]	电缆外径（最小）	6.35 â 12.70 [0.250 â 0.500]

产品信息

类型	Connector Kit	连接器性别	Plug
产品特性	Bail Lock, Shielded	套件类型	Connector Kit
产品子类型	Connector Kit	射频系列/标准	554950-2
