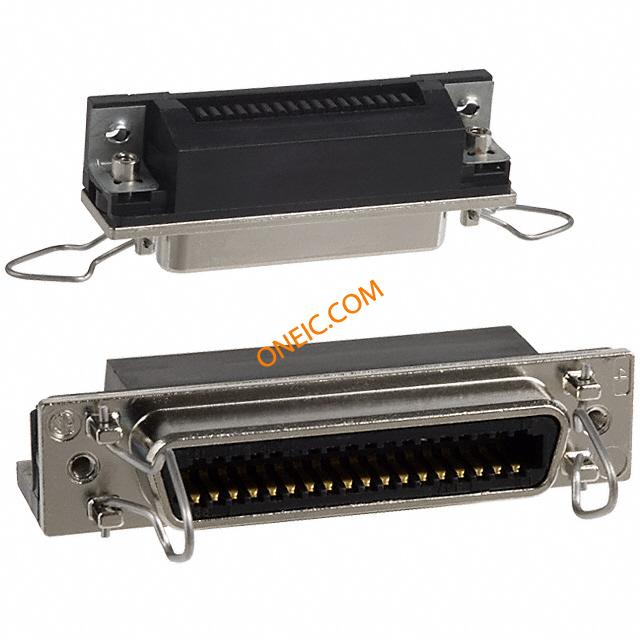

5555233-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 36 POS 2.16mm Solder RA Thru-Hole 36 Terminal 1 Port D-Sub Standard Connectors RCPT ASSY SHLD 36POS R/A CHAMP 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD,36POS,R/A CHAMP 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 36PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics 36 Position Dual Row 2.16 mm Right Angle Through Hole Receptacle Connector |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 70 Days | 子类别 | Connector Interface |
| 标准包装规格 | 40 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 镀层 | Zinc | 材料（通用） | Stainless Steel |
| 包装方式 | Tray | 螺钉尺寸 | 4-40 |
| 方向 | Standard | 屏蔽类型 | Yes |
| 端接方式 | Solder | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Bright Nickel over Copper |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Right Angle |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Bail Lock | 磁芯材质 | Polyester |
| 面板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Standard |
| 屏蔽材料 | Without | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 框架材料 | Polyester |
| 面板安装类型 | Rear Mount | 位数 | 36 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 产品特性 | Bail Lock, Shielded | 主要用途 | Bail Lock, Shielded |
| 制造商全称 | AMP | 其他规格 | Yes |
| 适用产品/相关产品 | 555233-1 | ||
