5352152-4

点击放大查看

5352152-4

制造商
TE Connectivity Ltd.
描述
Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 110POS TYPE B R/A Hard Metric Connectors REC B/110P R/A B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B22 RAF 110P
分类
连接器解决方案背板连接器背板连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

标准包装规格12产品类别Hard Metric Connectors
标准包装数量Rail / Tube工厂包装数量12

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

串扰Standard接口2mm HM
额定电压500V数据速率（最大）≤1
典型衰减标准最大额定电流1.5A

机械参数

间距2 mm长度44
包装方式Tray屏蔽是
壳体颜色灰色屏蔽类型Ground Return Shielding
端接方式Press Fit触头类型Without
固定类型是外壳颜色Gray
安装类型Through Hole连接器类型Type B, 22 Column
接触镀层Gold Over Nickel安装样式Through Hole
排数5连接器样式B 22
连接器用途Backplane插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Polyester GF
总长度44.00 [1.732]包装数量11
面板安装类型直角端接样式插针
配接方向Without触点数110
端接表面处理Tin over Nickel位数110
柱体长度（配合）3.30 [0.130]典型触点布局Signal
端子柱长度3.3接触镀层厚度50µin (1.27µm)

产品信息

备注Female connector with pre-installed shield.类型Hard Metric
连接器性别Receptacle系列Z-Pack
产品特性Upper Shield制造商全称AMP
产品子类型Connector模块/板类型Yes
列数22加载位置数All

环境参数

工作温度-55°C ~ 125°C

文档与媒体

在线文档
5352152-4?RQPN=5352152-4

相关型号

5352713-1

5352713-1

te connectivity / amp

Conn Hard Metric M 132 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 132POS TYPE B VERT Hard Metric Connectors Z-PACK/B-HDR, 132P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B-HDR, 132 POSN

¥38.9300
详情

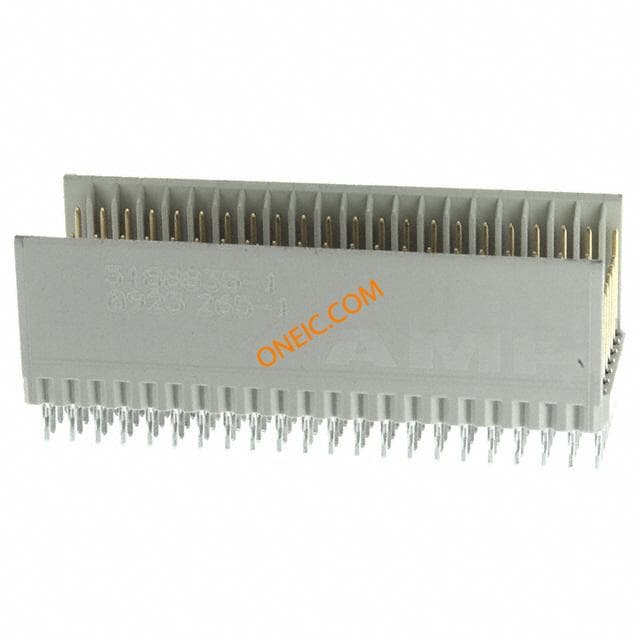

5188835-1

5188835-1

te connectivity / amp

Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS VERT GOLD 22 column type B plug Hard Metric Connectors 154P VERT PLUG ZPACK Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, TYPE B, 22CLMN CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,154POSITION,TYPEB TE Connectivity Z-PACK HM 系列 2mm 节距 154 路 直向 7 排 公 背板连接器, 按式端子 Z-PACK/B M-HDR 154P.

¥66.4802
详情

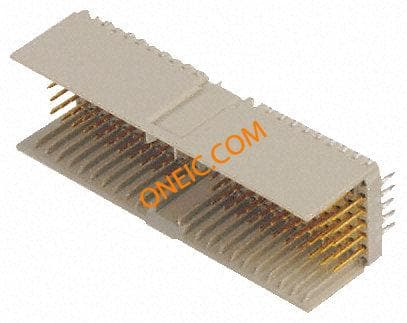

188835-1

188835-1

te connectivity / amp

Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD Header, 154 way, Z Pack, pin, Type B Hard Metric Connectors 154P VERT PLUG ZPACK Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, PLUG, 2MM, TYPE B, 154WAY CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,154POSITION,TYPEB Type B 154 Position 2 mm Pitch Through Hole Press Fit Hard Metric PCB Connector TE Connectivity Z-PACK HM 系列 2mm 节距 154 路 直向 7 排 公 背板连接器, 按式端子, 1.5A Z-PACK/B M-HDR 154P.

¥26.9448
详情
352131-1

352131-1

te connectivity / amp

Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 110POS R/A GOLD Z-PACK Hard B Plug Right Angle 110P Hard Metric Connectors 2MM 110P CARD EXT Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/BRAMH.110P. Z-PACK/B RAMH.110P.

¥77.3840
详情
5352132-1

5352132-1

te connectivity / amp

Conn Hard Metric M 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS TYPE B VERT Conn Hard Metric M 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B MALE HDR 110P

¥25.9080
详情
5352712-1

5352712-1

te connectivity / amp

Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM PLUG 154POS STR GOLD Hard Metric Connectors HM HDR B/154P VRT B-PLANE Z-PACK/B-HDR, 154 POSN

¥33.5240
详情
5352157-1

5352157-1

te connectivity / amp

Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Z-PACK/B MALE HDR 154P.,2MM HM Hard Metric Connectors Z-PACK/B MALE HDR 159P 2MM HM

¥41.8200
详情
5352716-1

5352716-1

te connectivity / amp

Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM PLUG 154POS STR GOLD

详情
暂无图片

352716-1

TE Connectivity / AMP

Hard Metric Connectors Z-PACK/B-HDR 154P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD

¥47.4300
详情
暂无图片

352128-1

TE Connectivity / AMP

Hard Metric Connectors 154P PLUG HDR Z-PACK 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal,

¥53.1760
详情

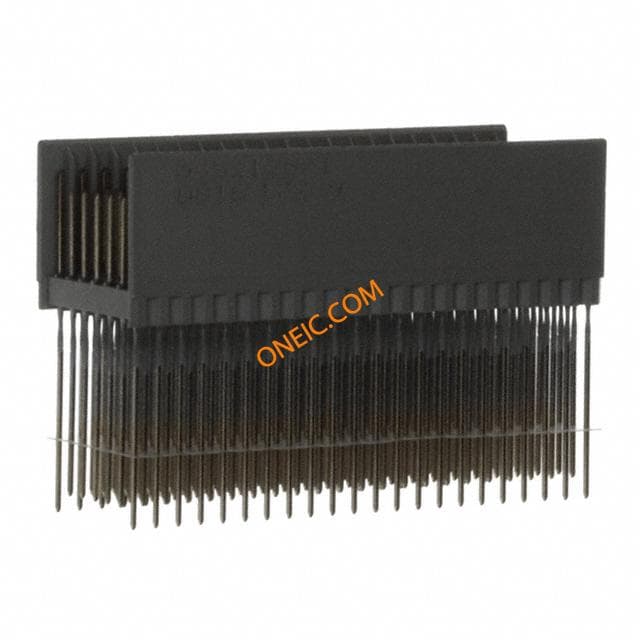

5352128-1
