188835-1
| 制造商 | |
| 描述 | Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD Header, 154 way, Z Pack, pin, Type B Hard Metric Connectors 154P VERT PLUG ZPACK Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, PLUG, 2MM, TYPE B, 154WAY CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,154POSITION,TYPEB Type B 154 Position 2 mm Pitch Through Hole Press Fit Hard Metric PCB Connector TE Connectivity Z-PACK HM 系列 2mm 节距 154 路 直向 7 排 公 背板连接器, 按式端子, 1.5A Z-PACK/B M-HDR 154P. |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 欧盟RoHS | Not Compliant |
| 海关税号 | 85366930 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 接触电阻 | 20 mohm |
| 最大额定电流 | 1.5A | 最小输入电压 | 500VAC |
| 最小供电电压 | 500VAC | ||
机械参数
| 深度 | 15.4 mm | 间距 | 2 mm |
| 高度 | 13.45 mm | 重量 | 0.02 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 22 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 7 | 连接器样式 | B 22 |
| 连接器用途 | CompactPCI P2/P5 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester |
| 总长度 | 44.00 [1.732] | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 154 |
| 端接表面处理 | Tin-Lead over Nickel | 接触件端接 | :Press Fit Vertical |
| 位数 | 154 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | PL |
| 系列 | Z-Pack | 成分 | P2/P5 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | Yes | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
352129-7
te connectivity / amp
Connector Accessories 154 POS 2mm Hard Metric Spacer Polyester Gray 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK/B SPACER 1,9 Hard Metric Connectors Z-PACK/B SPACER 1,9 Z-PACK/B SPACER 1,9 Search Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine,
352129-5
te connectivity / amp

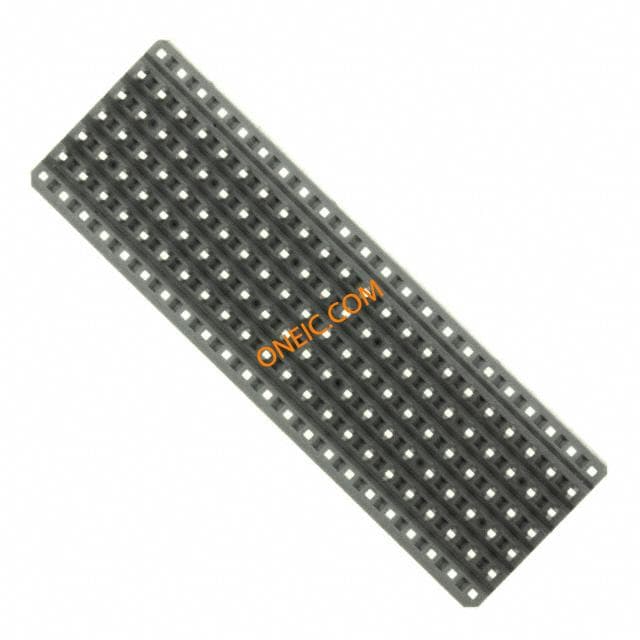

Connector Accessories 154 POS 2mm Hard Metric Spacer Polyester Gray 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN SPACER 154 POS 2MM GRAY Hard Metric Connectors B SPACER 1,5 Connector Accessories 154 POS 2mm Hard Metric Spacer Polyester Gray Product Highlights:AccessoryAccessory Type = SpacerShroud Type = B 22 ColCompactPCISpacer Thickness = 1.50 mmSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, Z-PACK/B SPACER 1,5
