点击放大查看

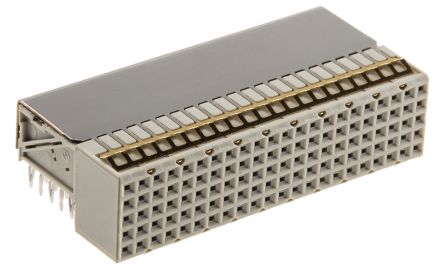

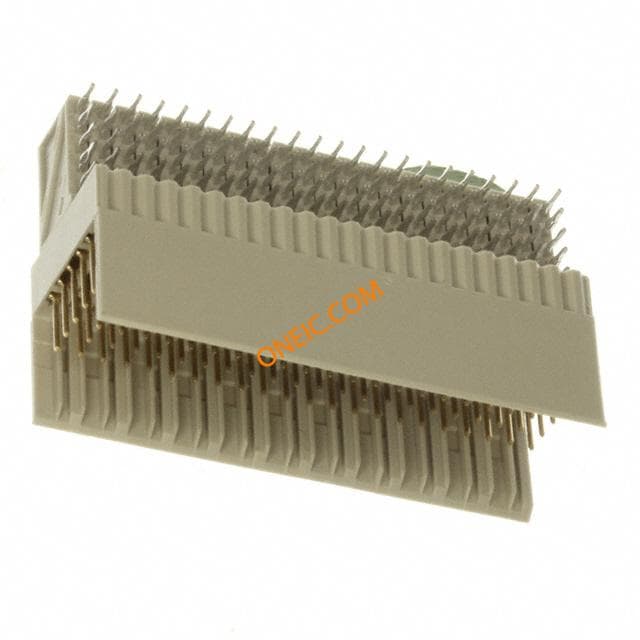

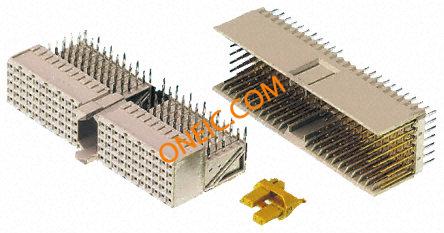

5352152-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS R/A GOLD 22 column type B shielded socket Hard Metric Connectors 110P Z/PK F/M HDR Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, RECEPTACLE, TYPE B, 22CLMN, SHIE 22COLUMNTYPEBSOCKET TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/B22 RAF 110P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 12 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :IEC |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 接触电阻 | 20 mohm |
| 最大额定电流 | 1.5A | 最小供电电压 | 500VAC |
机械参数

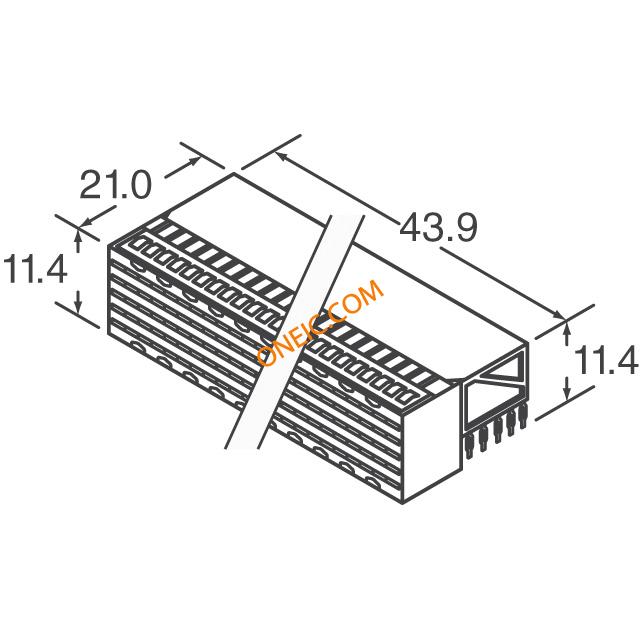

| 深度 | 21 mm | 间距 | 2 mm |
| 高度 | 11.4 mm | 重量 | 0.005 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Bulk |
| 屏蔽类型 | Ground Return Shielding | 端接方式 | Solder |
| 触头类型 | Without | 引脚间距 | :2mm |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 22 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | B 22 |
| 连接器用途 | CompactPCI J2/J5 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 44.00 [1.732] |
| 端接样式 | Press Fit | 配接方向 | Without |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 110 |
| 柱体长度（配合） | 3.30 [0.130] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Female connector with pre-installed shield. | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-Pack |
| 产品特性 | Upper Shield | 成分 | J2, J5 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | Yes | 列数 | 22 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
