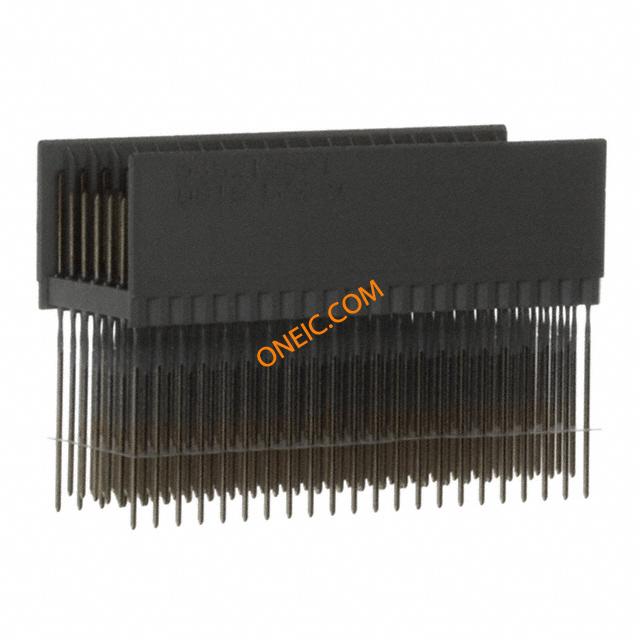

5352128-1

点击放大查看

5352128-1

制造商
TE Connectivity Ltd.
描述
Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD Hard Metric Connectors 154P PLUG HDR Z-PACK Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, Z-PACK, 2MM, 154WAY Z-PACK T-B MALE HEADER 154P
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别Hard Metric Connectors标准包装数量Rail / Tube
工厂包装数量11

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

串扰Standard接口2mm HM
额定电压500V最大额定电流1.5A

机械参数

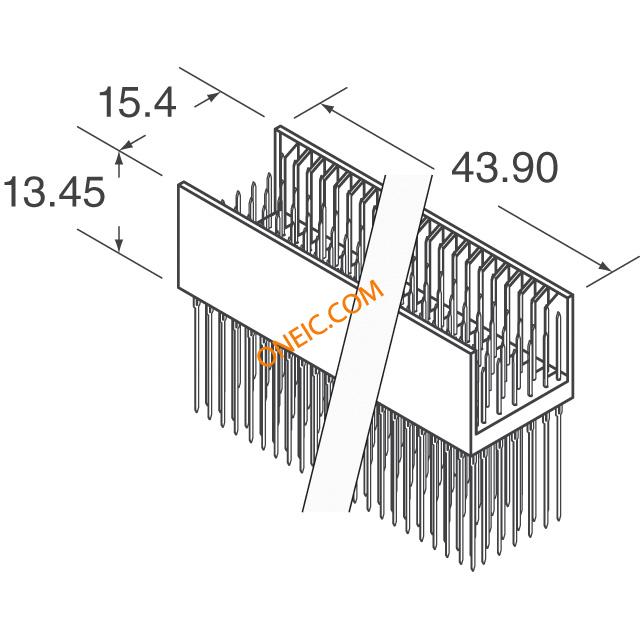

深度15.4 mm间距2 mm
高度13.45 mm重量0.09
包装方式Tube屏蔽类型No
端接方式Press Fit触头类型Feed through
柱间距:2mm极化Multi-Purpose Center
外壳颜色Gray安装类型Through Hole
连接器类型Type B, 22 Column接触镀层Gold Over Nickel
安装样式Through Hole排数7
连接器样式B 22连接器用途CompactPCI P2/P5
触头材料Phosphor Bronze前部连接器Level 1
壳体材料Polyester GF总长度44.00 [1.732]
端接样式Pin配接方向With
触点数154端接表面处理Tin over Nickel
接触件端接:Through Hole Vertical位数154
柱体长度（配合）14.50 [0.571]接触镀层厚度30µin (0.76µm)

产品信息

类型Hard Metric连接器性别Plug
系列Z-Pack产品特性Alignment Strip
成分P2/P5制造商全称AMP
产品子类型Connector模块/板类型Yes
加载位置数All

环境参数

工作温度-55°C ~ 125°C

相关型号

暂无图片

352129-7

te connectivity / amp

Connector Accessories 154 POS 2mm Hard Metric Spacer Polyester Gray 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK/B SPACER 1,9 Hard Metric Connectors Z-PACK/B SPACER 1,9 Z-PACK/B SPACER 1,9 Search Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine,

¥6.5280
详情

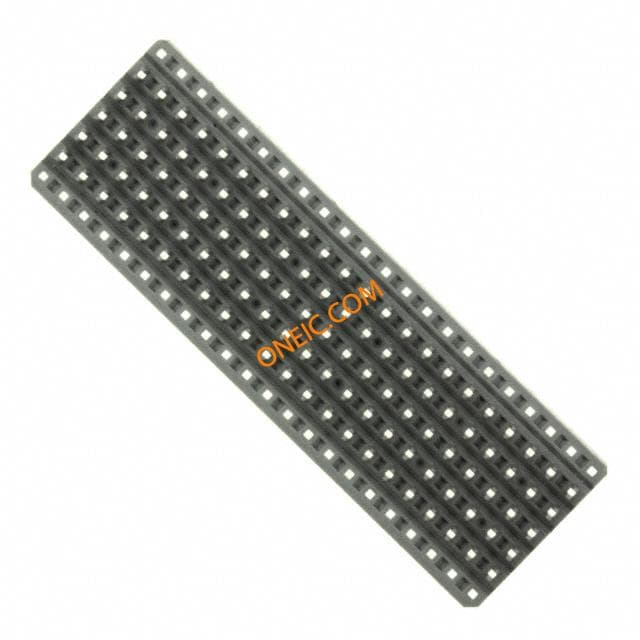

352129-5
