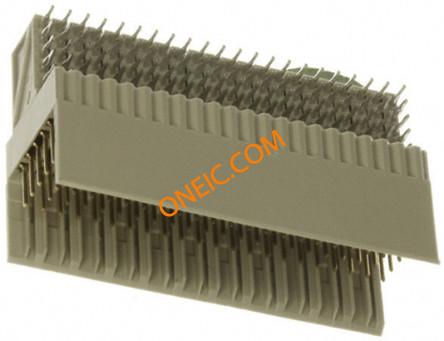

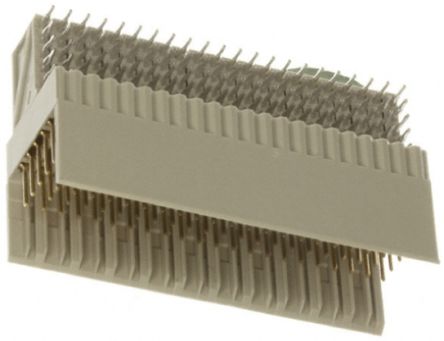

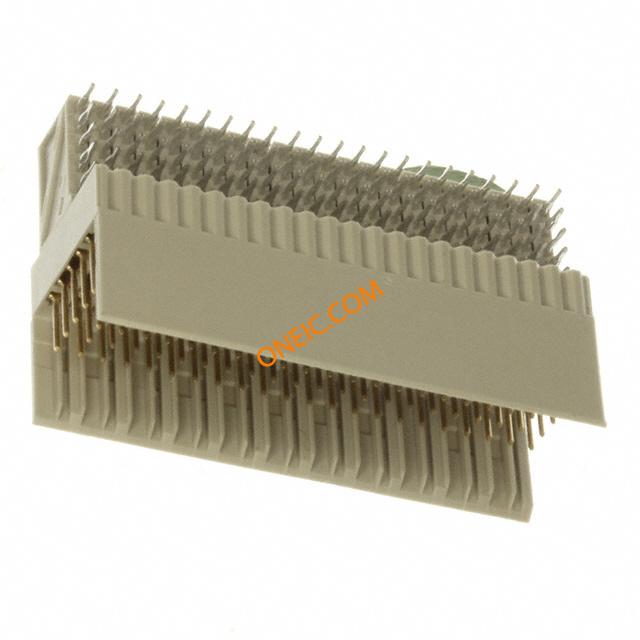

5352131-1
| 制造商 | |
| 描述 | Conn Hard Metric M 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS RT ANG 2MM 2mm PCB plug Type B 5 x110 Hard Metric Connectors 2MM 110P CARD EXT Conn Hard Metric M 110 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 110POS 110 Position 5 Row 2 mm Plug Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 公 背板连接器, 按式端子 Z-PACK/B RAMH.110P. |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 12 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 深度 | 26.8 mm | 间距 | 2 mm |
| 高度 | 15.4 mm | 重量 | 0.0001 |
| 包装方式 | Tray | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Without |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 22 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | B 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 44.00 [1.732] | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 110 |
| 端接表面处理 | Tin over Nickel | 接触件端接 | :Press Fit Right Angle |
| 位数 | 110 | 柱体长度（配合） | 3.30 [0.130] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Warning: Card extender male connectors should not be used with cable connectors | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | Z-Pack |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 模块/板类型 | No | 列数 | 22 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
352068-1
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Connector,rcp,TypeA,HM,2mm,110W Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 110POS CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA 2 mm 110 Position Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/A F-HDR 110P
5646489-1
te connectivity / amp

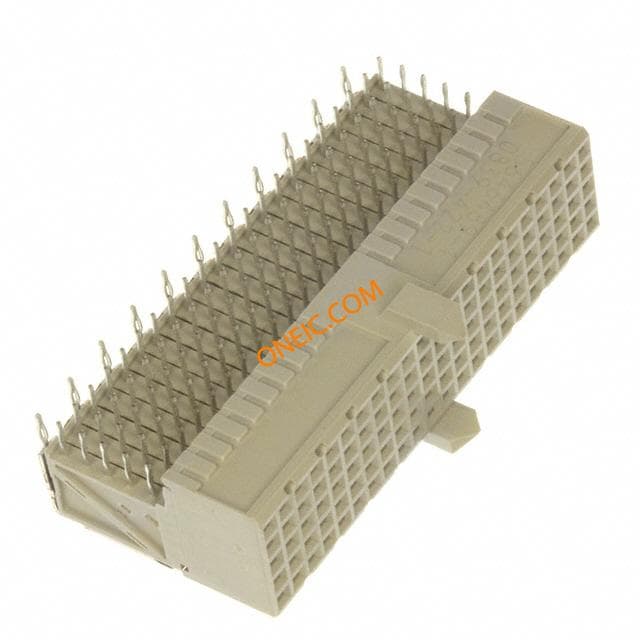

Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM Connector,rcp,TypeA/B,HM,2mm,110W Hard Metric Connectors REC AB110P R/A B-PLANE HM Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type A/BReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, 2MM, 110WAY TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A 2MM H.M. A/B-22 RECEPT. ASSY.
5106773-1
te connectivity / amp

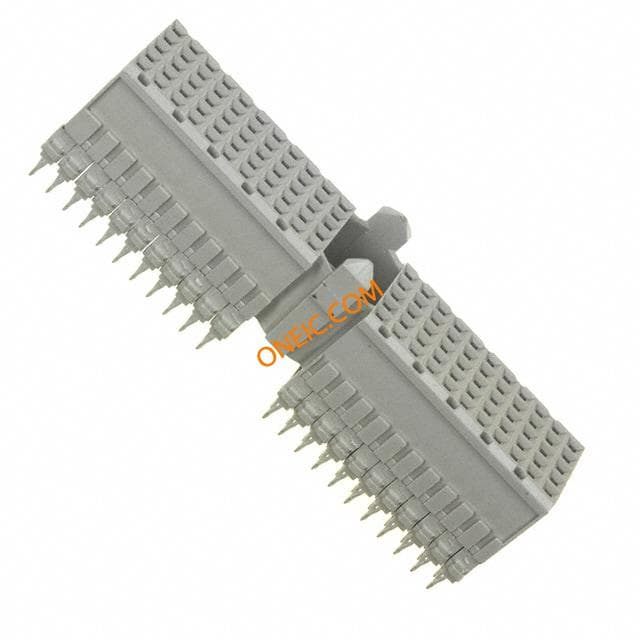

Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS VERT 2MM Hard Metric Connectors REC A/110P VRT B-PLANE HM Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, RECEPTACLE, 2MM, 110WAY HARD METRIC CONNECTOR, RECEPTACLE 110POS 110 Position Female Press-Fit Vertical Socket/Receptacle TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 5 排 母 背板连接器, 按式端子 Z-PACK/A VF 110P
