点击放大查看

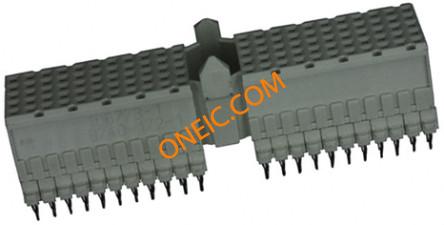

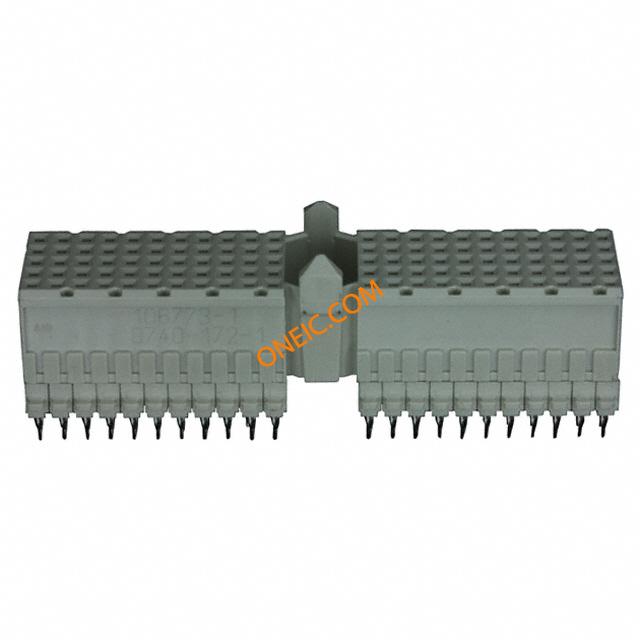

106773-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 110 POS VERT 2MM PCB Z-Pack,Header,Rcp,Type A,vertical,110way Conn Hard Metric RCP 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 110POS 110 Position 5 Row 2 mm Pitch Receptacle Press Fit PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直向 5 排 母 背板连接器, 按式端子 Z-PACK/A F.HDR.110P |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 重量 | 0.0001 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 柱间距 | :2mm | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type A | 接触镀层 | Gold Over Nickel |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 配接方向 | With | 触点数 | 110 |
| 端接表面处理 | Tin-Lead over Nickel | 接触件端接 | :Press Fit Vertical |
| 位数 | 110 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | Receptacle |
| 系列 | :Z-PACK | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
100143-1
te connectivity / amp
Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS VERT GOLD 2MM Header vert pcb 110way 5 row Pin Z-Pack Hard Metric Connectors 110P 5 ROW MALE CONN Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,PLUG,2MMHARDMETRIC,TYPEA,110POS,ACTIONPINPOST,SIGNAL null TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直向 5 排 公 背板连接器, 按式端子, 1.5A PACK/A MALE HDR 110P, 2MM HM
106015-1
te connectivity / amp
Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 110 POS 2MM PCB Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 110POS CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA
5352131-1
te connectivity / amp
Conn Hard Metric M 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS RT ANG 2MM 2mm PCB plug Type B 5 x110 Hard Metric Connectors 2MM 110P CARD EXT Conn Hard Metric M 110 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 110POS 110 Position 5 Row 2 mm Plug Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 公 背板连接器, 按式端子 Z-PACK/B RAMH.110P.

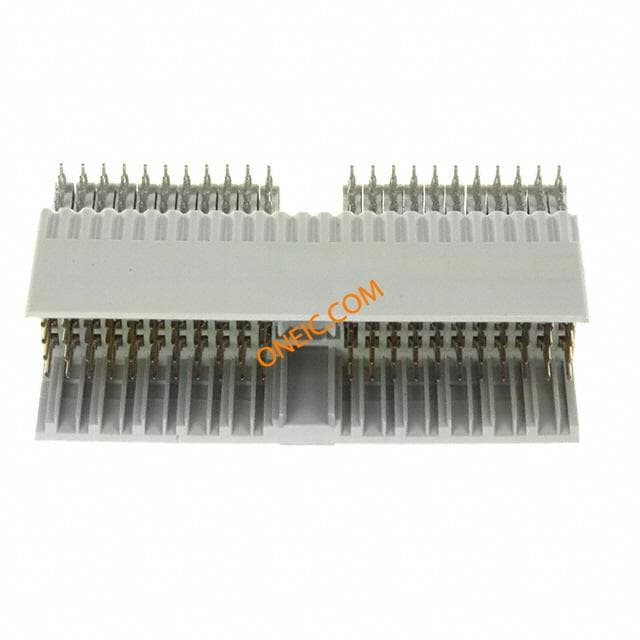

5106015-1
te connectivity / amp
Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS RT ANG 2MM Header, 110 way, Z Pack, pin, Type A Hard Metric Connectors HDR A/110P R/A B-PLANE HM Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 110POS CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA Type A 110 Position 2 mm Plug Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 公 背板连接器, 焊接端子 Z-PACK/A RAMH.110P

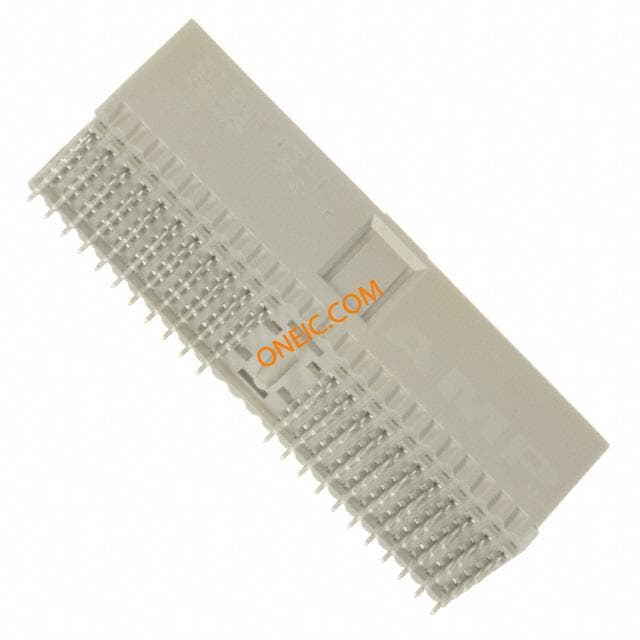

5100143-1
