5106015-1
| 制造商 | |

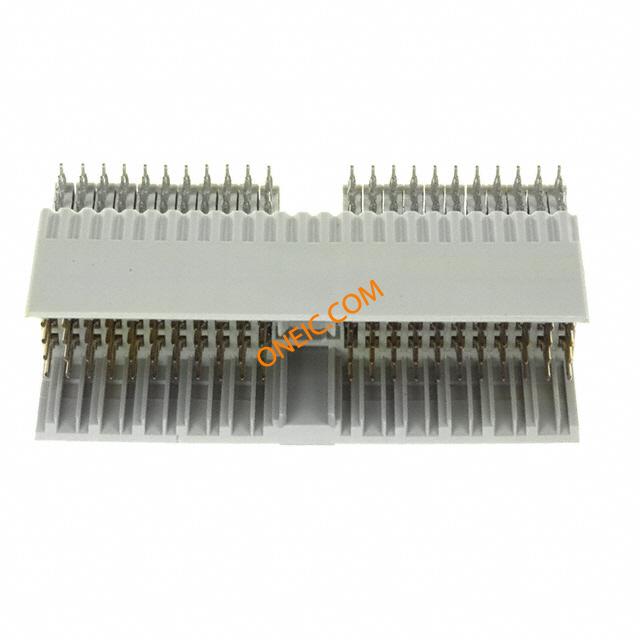

| 描述 | Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS RT ANG 2MM Header, 110 way, Z Pack, pin, Type A Hard Metric Connectors HDR A/110P R/A B-PLANE HM Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 110POS CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA Type A 110 Position 2 mm Plug Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 公 背板连接器, 焊接端子 Z-PACK/A RAMH.110P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数

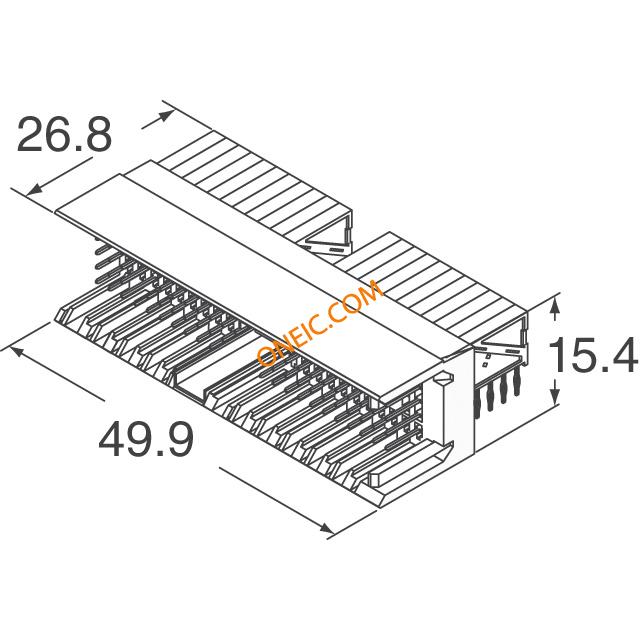

| 深度 | 26.8 mm | 间距 | 2 mm |
| 高度 | 17.2 mm | 重量 | 0.014 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 柱间距 | :2mm | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type A | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 5 |
| 连接器样式 | A 22 | 连接器用途 | CompactPCI |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester GF |
| 总长度 | 50.00 [1.968] | 包装数量 | 11 |
| 端接样式 | Pin | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Through Hole Right Angle | 位数 | 110 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Connector conforms to all testing according to IEC 61076-4-101, Performance Lev | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | Z-Pack |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 模块/板类型 | Yes | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
352068-1
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Connector,rcp,TypeA,HM,2mm,110W Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 110POS CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA 2 mm 110 Position Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/A F-HDR 110P
106015-1
te connectivity / amp
Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 110 POS 2MM PCB Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 110POS CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA
5-100525-6
te connectivity / amp

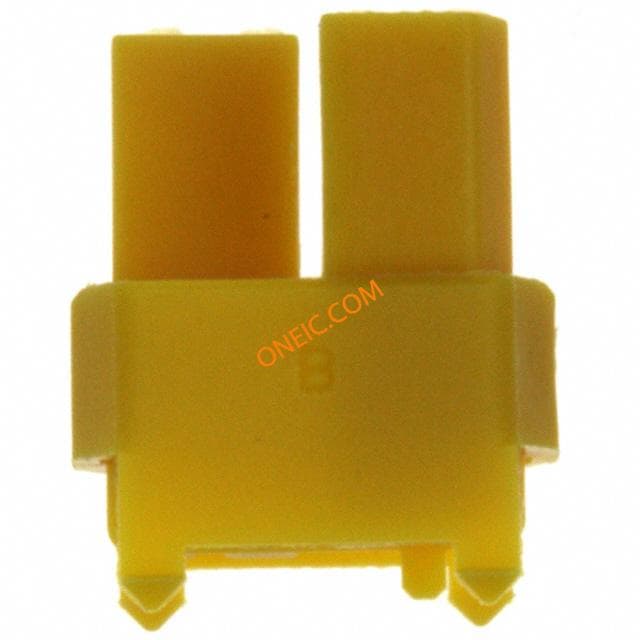

Connector Accessories Plug Coding Key Cadmium Yellow 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN CODING KEY PLUG CADMIUM YEL Z-Pack,Coding key,compactPCI,A,D,L,M Hard Metric Connectors Z PACK CODING KEY Connector Accessories Plug Coding Key Cadmium Yellow Product Highlights:Coding KeyPlugConnector Type = Type A, Type D, Type L, Type MCompactPCITerminate To Printed Circuit BoardSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CODING KEY, TYPE A, D, L, & M MALE CONN CODINGKEY,PLUG,Z-PACK2MMHARDMETRIC,TYPEA,TYPED,TYPEL,TYPEM Coding Key Plug Cadmium Yellow Connector Accessory TE Connectivity 公 键控插头 Z-PACK M.CODING KEY
5106773-1
te connectivity / amp
Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS VERT 2MM Hard Metric Connectors REC A/110P VRT B-PLANE HM Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, RECEPTACLE, 2MM, 110WAY HARD METRIC CONNECTOR, RECEPTACLE 110POS 110 Position Female Press-Fit Vertical Socket/Receptacle TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 5 排 母 背板连接器, 按式端子 Z-PACK/A VF 110P
5100147-1
te connectivity / amp

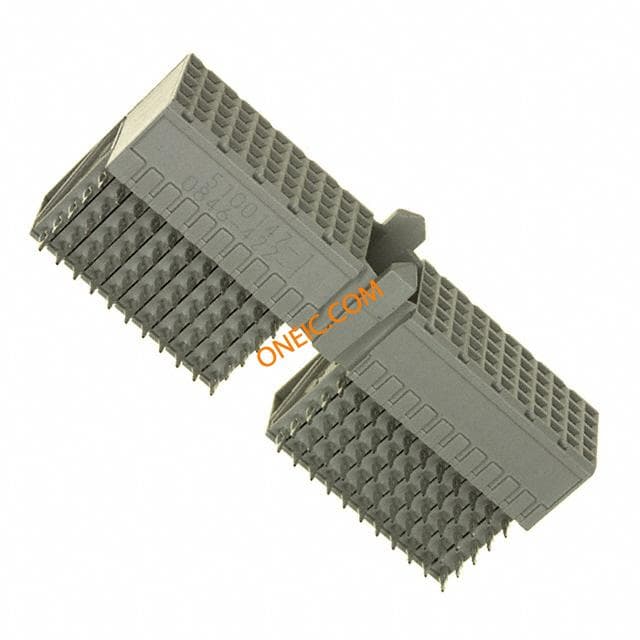

Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM 110 way r/a Z pack hard metric socket Hard Metric Connectors REC A/110P R/A B-PLANE HM Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, SOCKET, PCB, R/A, TYPE A, 5ROW, 110WAY CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA Type A 110 Position 2 mm Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 按式端子, 1.5A Z-PACK/A RAF 110P
