点击放大查看

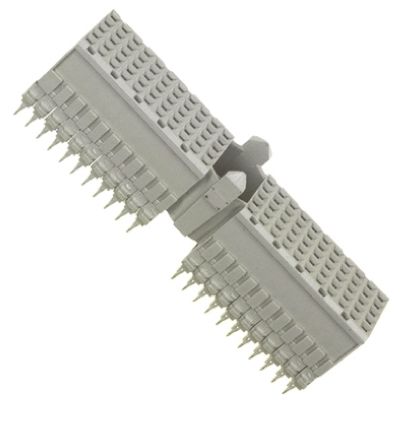

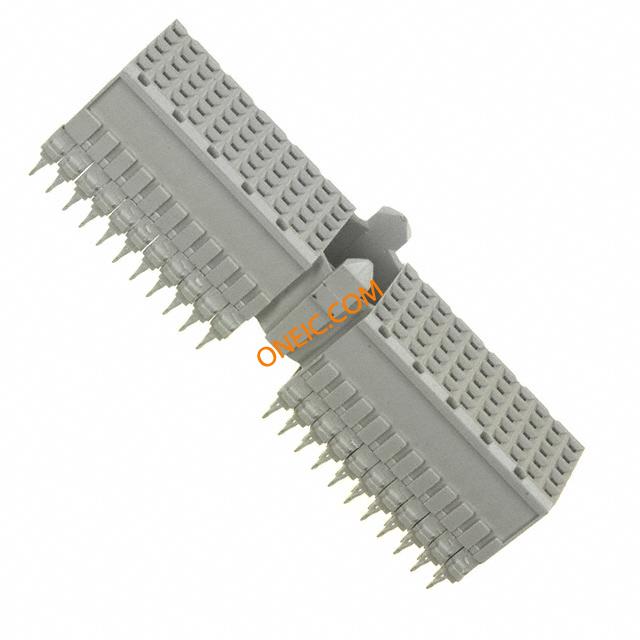

5106773-1
| 制造商 | |
| 描述 | Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS VERT 2MM Hard Metric Connectors REC A/110P VRT B-PLANE HM Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, RECEPTACLE, 2MM, 110WAY HARD METRIC CONNECTOR, RECEPTACLE 110POS 110 Position Female Press-Fit Vertical Socket/Receptacle TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 5 排 母 背板连接器, 按式端子 Z-PACK/A VF 110P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数

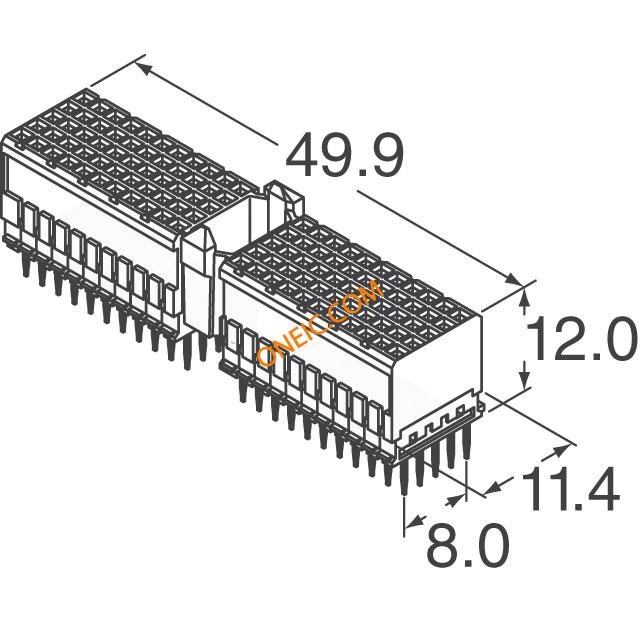

| 深度 | 12.25 mm | 间距 | 2 mm |
| 重量 | 0.02 | 包装方式 | Tube |
| 屏蔽类型 | No | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 柱间距 | :2mm |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type A |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 端接样式 | Pin | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Vertical | 位数 | 110 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Hard Metric | 连接器性别 | Receptacle |
| 系列 | Z-Pack | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
