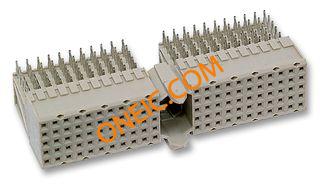

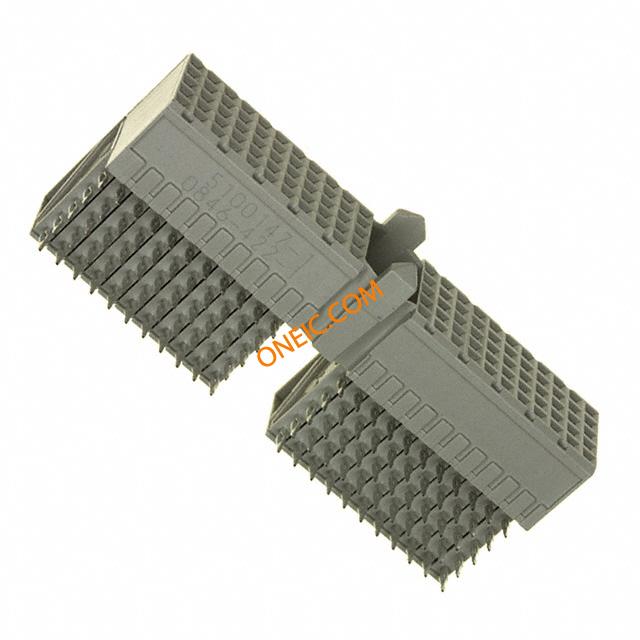

5100147-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM 110 way r/a Z pack hard metric socket Hard Metric Connectors REC A/110P R/A B-PLANE HM Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, SOCKET, PCB, R/A, TYPE A, 5ROW, 110WAY CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA Type A 110 Position 2 mm Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 按式端子, 1.5A Z-PACK/A RAF 110P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 接触电阻 | 20 mohm |
| 最大额定电流 | 1.5A | 最小供电电压 | 500VAC |
机械参数
| 间距 | 2 mm | 高度 | 12.25 mm |
| 重量 | 0.004 | 材料（通用） | :Glass Filled Polyester |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 引脚间距 | :2mm | 柱间距 | :2mm |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type A |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | CompactPCI | 触头材料 | Phosphor Bronze |

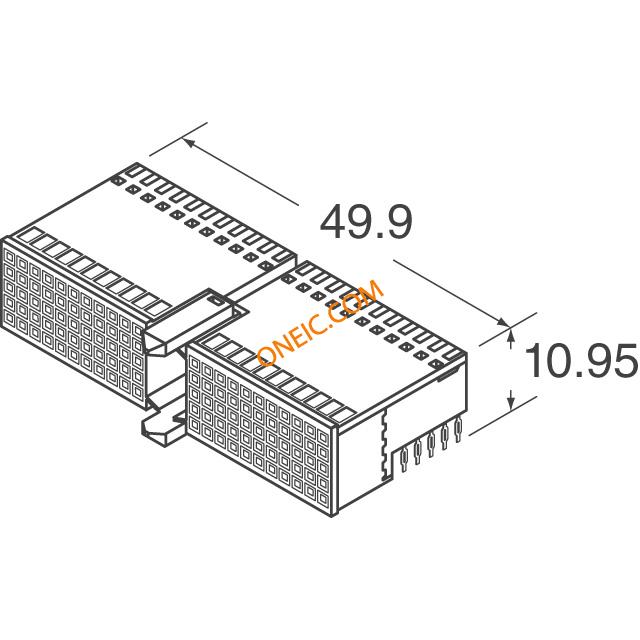

| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 端接样式 | Press Fit |
| 连接器颜色 | :Grey | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 110 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Connector conforms to all testing according to IEC 61076-4-101, Performance Lev | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-Pack |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号

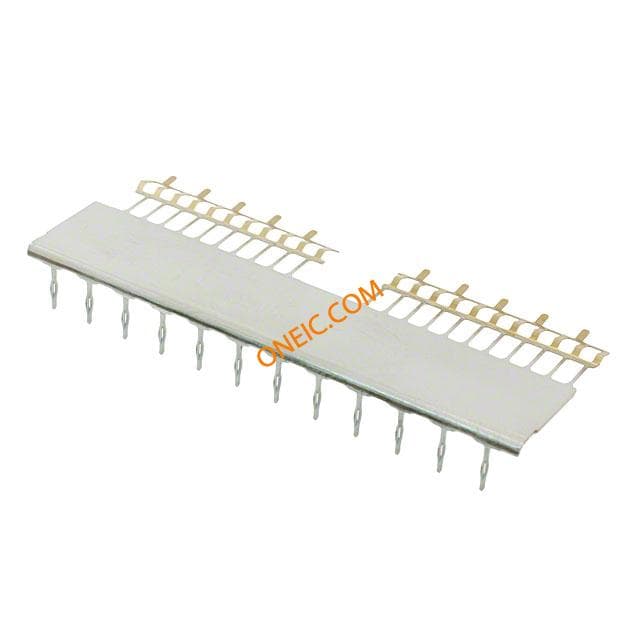

5338108-2
