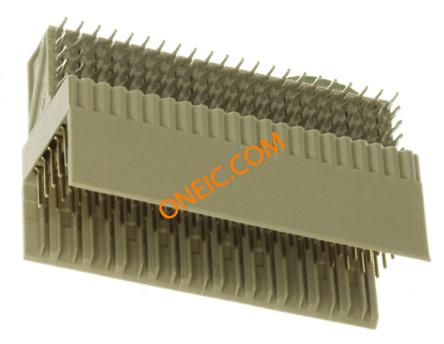

352131-1
| 制造商 | |
| 描述 | Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 110POS R/A GOLD Z-PACK Hard B Plug Right Angle 110P Hard Metric Connectors 2MM 110P CARD EXT Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 22 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/BRAMH.110P. Z-PACK/B RAMH.110P. |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 12 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 数据速率（最大） | ≤1 | ||
机械参数
| 深度 | 26.8 mm | 间距 | 2 mm |
| 高度 | 15.4 mm | 长度 | 44 |
| 包装方式 | Tray | 屏蔽 | 否 |
| 屏蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Without | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 22 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | B 22 |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 前部连接器 | Level 1 |
| 壳体材料 | Polyester GF | 总长度 | 44.00 [1.732] |
| 包装数量 | 12 | 面板安装类型 | 直角 |
| 先合后断 | No | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 110 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 110 |
| 柱体长度（配合） | 3.30 [0.130] | 接触件表面处理 - 配合 | 第 1 级 |
| 典型触点布局 | ACTION PIN, Signal | 接触长度 - 配合 | 3.3 |
| 端子柱长度 | 3.3 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Warning: Card extender male connectors should not be used with cable connectors | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | Z-PACK |
| 卡类型 | 无 | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 列数 | 22 | 加载位置数 | All |
文档与媒体
相关型号
352268-1
te connectivity / amp
Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS STR GOLD Hard Metric Connectors 110P VPACK HEADER 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal,
5352152-4
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 110POS TYPE B R/A Hard Metric Connectors REC B/110P R/A B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B22 RAF 110P
1950217P002
TE Connectivity

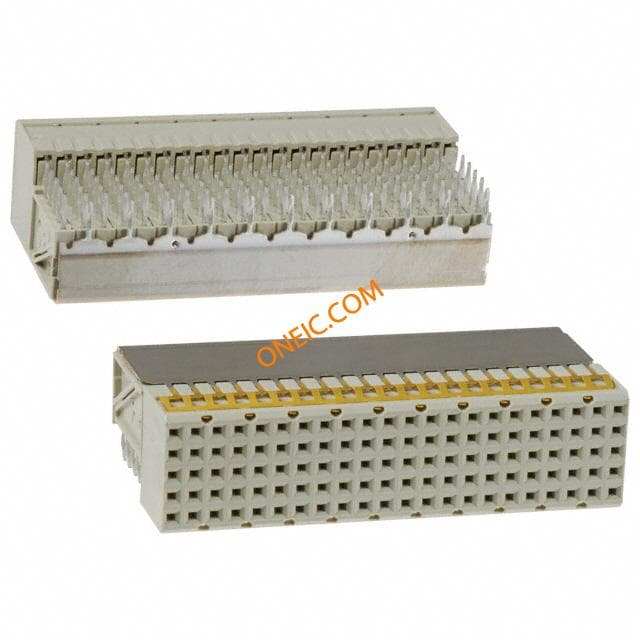

CONN 2MM HM RCPT 110POS R/A GOLD
