352268-1

制造商
TE Connectivity Ltd.
描述
Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS STR GOLD Hard Metric Connectors 110P VPACK HEADER 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal,
分类
连接器解决方案背板连接器背板连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

标准包装规格12产品类别Hard Metric Connectors
标准包装数量Rail / Tube工厂包装数量12

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

串扰Standard接口2mm HM
额定电压500V最大额定电流1.5A

机械参数

间距2 mm包装方式Bulk
屏蔽类型No端接方式Press Fit
触头类型Without外壳颜色Gray
安装类型Through Hole连接器类型Type B, 22 Column
接触镀层Gold Over Nickel安装样式Through Hole
排数5连接器样式B 22
连接器用途Backplane触头材料Phosphor Bronze
壳体材料Polyester GF总长度44.00 [1.732]
端接样式Press Fit配接方向Without
触点数110端接表面处理Tin-Lead over Nickel
位数110柱体长度（配合）3.30 [0.130]
接触镀层厚度30µin (0.76µm)

产品信息

类型Hard Metric连接器性别Receptacle
系列Z-Pack制造商全称AMP
产品子类型Connector模块/板类型No
加载位置数All

环境参数

工作温度-55°C ~ 125°C

文档与媒体

在线文档
352268-1?RQPN=352268-1

相关型号

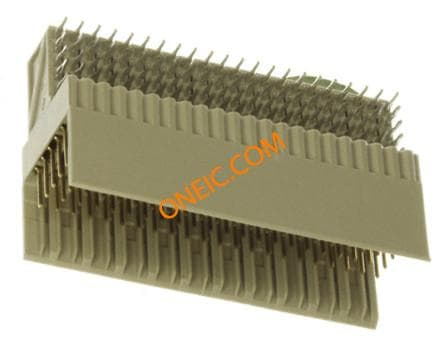

352131-1
