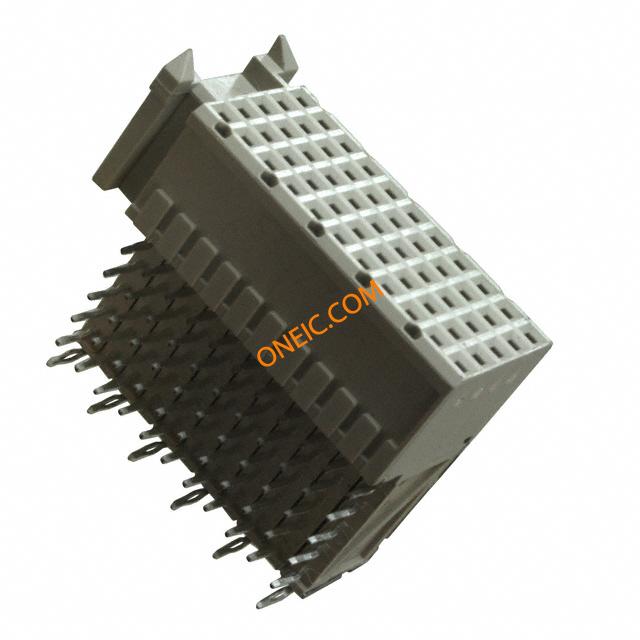

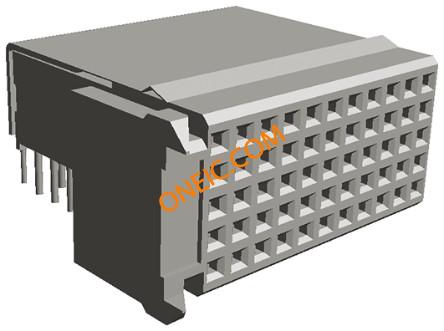

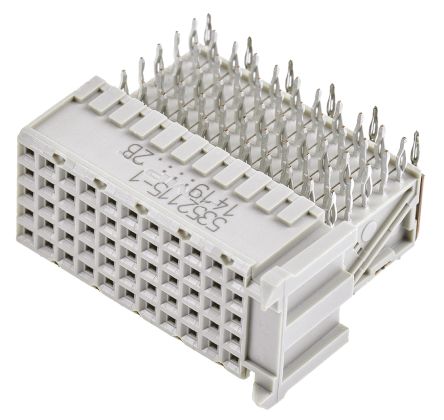

5352115-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 55POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 55 Way 5 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors REC C/055P R/A B-PLANE HM Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, RECEPTACLE, 55WAY, R/A Z-PACK2MMHMRCCASY,Z-PACK/CRAF55P 55 Position 2 mm Pitch Receptacle Right Angle Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 55 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A 5352115 Z-PACK/C RAF 55P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 22 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 重量 | 0.004 |
| 包装方式 | Tube | 屏蔽类型 | Ground Return Shielding |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 引脚间距 | :2mm | 柱间距 | :2mm |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type C |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | C 11 |
| 连接器用途 | CompactPCI | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 总长度 | 50.00 [1.968] |
| 端接样式 | Pin | 配接方向 | With |
| 触点数 | 55 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 55 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Female connector with pre-installed shield. | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-PACK HM |
| 产品特性 | Upper Shield | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
106081-1
te connectivity / amp
Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER VERT 77POS SHORT 2MM Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,PLUG,2MMHARDMETRIC,TYPEC,ACTIONPINPOST,SIGNAL 77 Position (5+2) Rows 2 mm Pitch Plug Vertical Hard Metric PCB Mount Connector 2MM HM, HEADER, TYPE C
106012-1
te connectivity / amp
Conn Hard Metric PL 55 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 55 POS 2MM PCB Z-PACK Hard Metric C Plug Right Angle55P Hard Metric Connectors Z-PACK/C M-HDR 55P Conn Hard Metric PL 55 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 55POS Z-PACK/CRAMH.55P. Z-PACK/C RAMH. 55P.
5106081-1
te connectivity / amp
Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Hard Metric Connectors HDR C/077P VRT B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 77POS VERT 2MM 2mm PCB plug Type C 5+2 x77 Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM,HEADER,TYPEC TE Connectivity Z-PACK HM 系列 2mm 节距 77 路 直向 7 排 公 背板连接器, 按式端子 2MM HM, HEADER, TYPE C

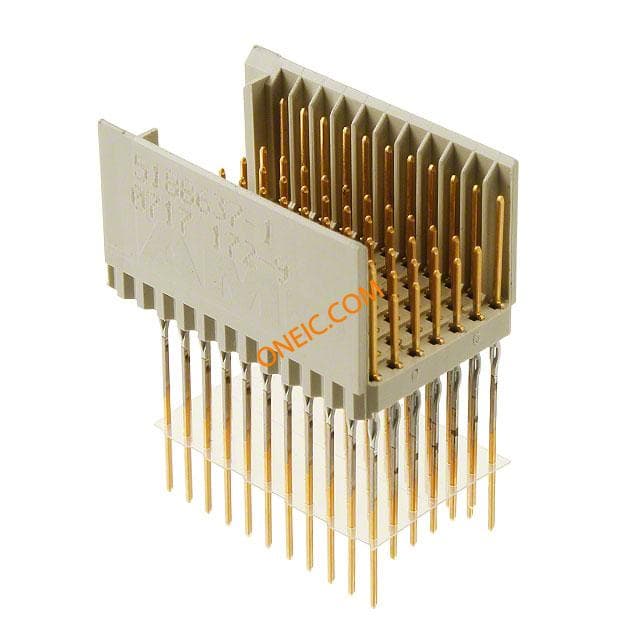

5188637-1
