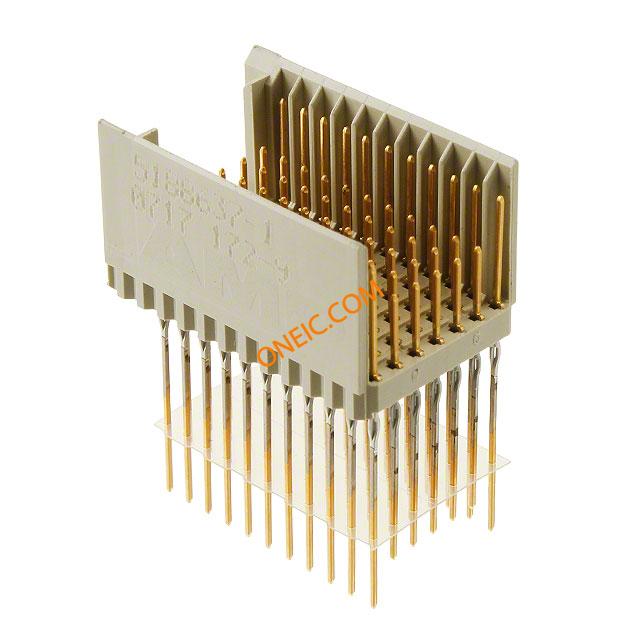

5188637-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 77POS TYPE C VERT Hard Metric Connectors Z-PACK/C M-HDR 55P Z-PACK/C M-HDR 77P Z-PACK/C M-HDR 77P Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| 分类 |
商业参数
| 标准包装规格 | 21 | 标准包装数量 | Bulk |
| 工厂包装数量 | 21 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 内核大小 | 16 | 串扰 | Standard |
| 接口 | 2mm HM | 额定电压 | 500V |
| 数据速率（最大） | ≤1 | 典型衰减 | 标准 |
| 最大额定电流 | 1.5A | ||
机械参数
| 间距 | 2 mm | 长度 | 25 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 屏蔽类型 | Ground Return Shielding |
| 端接方式 | Press Fit | 触头类型 | Feed through |
| 极化 | Polarizing Peg | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type C |
| 接触镀层 | Gold Over Nickel | 排数 | 7 |
| 连接器样式 | C 11 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 25.00 [0.984] | 包装数量 | 22 |
| 面板安装类型 | 垂直 | 配接方向 | With |
| 触点数 | 77 | 端接表面处理 | Tin over Nickel |
| 位数 | 77 | 柱体长度（配合） | 13.00 [0.512] |
| 接触件表面处理 - 配合 | 第 1 级 | 典型触点布局 | ACTION PIN, 信号 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | This module type is used only at one end of stacked connector modules | 类型 | Hard Metric |
| 连接器性别 | Plug | 产品特性 | Board Guide |
| 卡类型 | 无 | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | 转换前位置数 | A, B, C, D, E, F, Z |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
