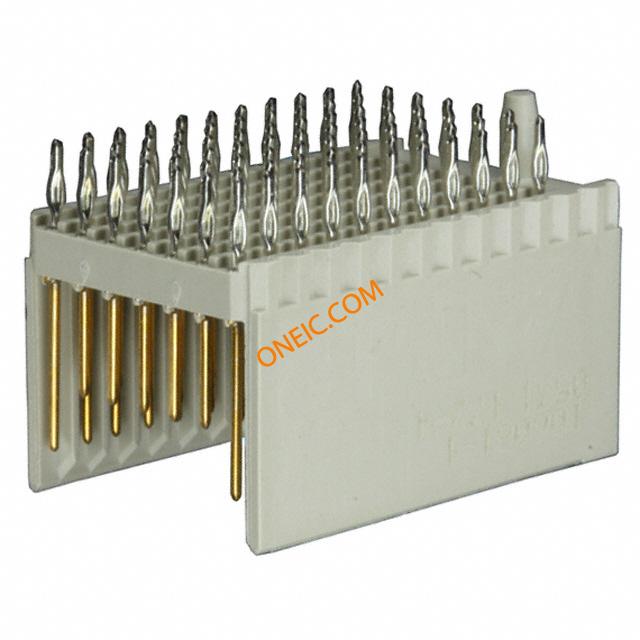

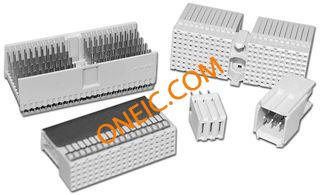

106081-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER VERT 77POS SHORT 2MM Conn Hard Metric PL 77 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,PLUG,2MMHARDMETRIC,TYPEC,ACTIONPINPOST,SIGNAL 77 Position (5+2) Rows 2 mm Pitch Plug Vertical Hard Metric PCB Mount Connector 2MM HM, HEADER, TYPE C |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 接触电阻 | 20 mohm | 最大额定电流 | 1.5A |
| 最小供电电压 | 500VAC | ||
机械参数
| 深度 | 15.4 mm | 间距 | 2 mm |
| 长度 | 25 | 包装方式 | Tube |
| 屏蔽 | 否 | 壳体颜色 | 灰色 |
| 屏蔽类型 | Ground Return Shielding | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 极化 | Polarizing Peg |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type C | 接触镀层 | Gold Over Nickel |
| 触点时序 | 否 | 安装样式 | Through Hole |
| 排数 | 7 | 端子样式 | ACTION PIN, 信号 |
| 连接器样式 | C 11 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 25.00 [0.984] | 包装数量 | 22 |
| 面板安装类型 | 垂直 | 主要材料 | HardMetric |
| 端接样式 | 插针 | 配接方向 | With |
| 触点数 | 77 | 端接表面处理 | Tin-Lead over Nickel |
| 位数 | 77 | 柱体长度（配合） | 3.71 [0.146] |
| 接触件表面处理 - 配合 | 第 1 级 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 制造商 | 3.7 | 备注 | This module type is used only at one end of stacked connector modules |
| 类型 | Hard Metric | 连接器性别 | Plug |
| 产品特性 | Board Guide | 卡类型 | 无 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 控制器系列 | 否 | 模块/板类型 | No |
| 列数 | 11 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
