点击放大查看

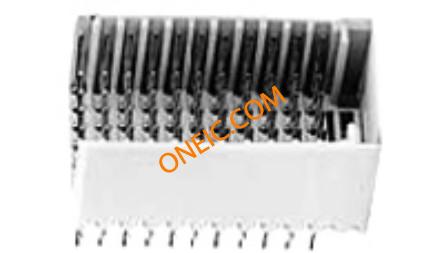

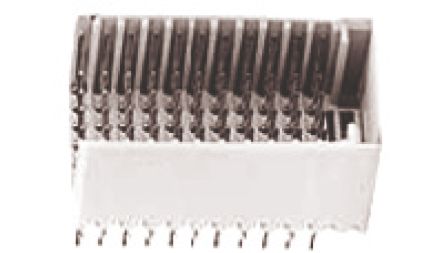

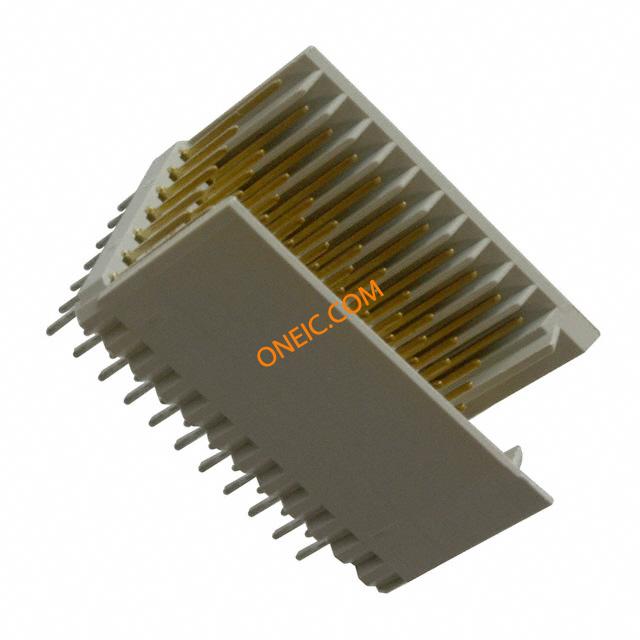

5106081-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Hard Metric Connectors HDR C/077P VRT B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 77POS VERT 2MM 2mm PCB plug Type C 5+2 x77 Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM,HEADER,TYPEC TE Connectivity Z-PACK HM 系列 2mm 节距 77 路 直向 7 排 公 背板连接器, 按式端子 2MM HM, HEADER, TYPE C |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 21 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 典型衰减 | 标准 | 最大额定电流 | 1.5A |
机械参数
| 深度 | 15.4 mm | 间距 | 2 mm |
| 长度 | 25 | 包装方式 | Tube |
| 屏蔽 | 否 | 壳体颜色 | 灰色 |
| 方向 | 直 | 屏蔽类型 | Ground Return Shielding |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 固定类型 | 否 | 极化 | Polarizing Peg |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type C | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 7 |
| 连接器样式 | C 11 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester |
| 总长度 | 25.00 [0.984] | 包装数量 | 22 |
| 面板安装类型 | 垂直 | 端接排数 | 按式 |
| 端接样式 | Pin | 配接方向 | With |
| 触点数 | 77 | 端接表面处理 | Tin over Nickel |
| 位数 | 77 | 柱体长度（配合） | 3.71 [0.146] |
| 接触件表面处理 - 配合 | 第 1 级 | 典型触点布局 | ACTION PIN, 信号 |
| 接触镀层厚度 | 30µin (0.76µm) | 后壳材料及镀层 | 硬公制 C 型 |
产品信息
| 制造商 | 3.7 | 备注 | This module type is used only at one end of stacked connector modules |
| 类型 | Hard Metric | 连接器性别 | Plug |
| 系列 | Z-Pack | 卡类型 | 无 |
| 制造商全称 | AMP | 产品子类型 | Headers |
| 控制器系列 | 否 | 模块/板类型 | No |
| 列数 | 11 | 加载位置数 | All |
| 转换前位置数 | A, B, C, D, E, F, Z | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
