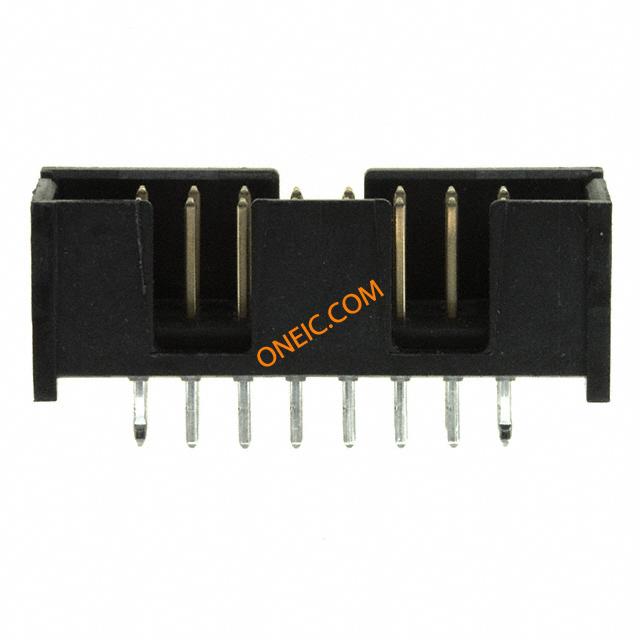

5104338-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD Headers & Wire Housings 100X100 HDR 2X008P VRT LOW PRO Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 16P VERT HT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 供电电压 | 250 | 输入电阻 | 5000 |
| 最大额定电流 | 1 A | 绝缘电阻 | 5000 MOhms |
| 低功耗链路范围 | 带有 | 连接器类型 - 电压输入 | 方柱 |
机械参数
| 颜色 | Gray | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 高度 | 9.86 mm |
| 长度 | 27.94 mm [ 1.1 in ] | 底座类型 | 带有 |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] |
| 引脚样式 | 直角 | 方向 | 直 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 引脚间距 | 0.100" (2.54mm) | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | 4 面 | 驱动力 | 不带 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 27.94 mm |
| 安装特性 | 固定焊尾 | 包装数量 | 30 |
| 面板安装类型 | 通孔 | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 板面高度 | 0.240" (6.10mm) |
| 触点数 | 16 | 位数 | 16 |
| 兼容外壳尺寸（如TM-700等） | 与母端插接 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.05 mm |
| 接触镀层厚度 | 15µin (0.38µm) | 每排/每行位置数 | All |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 覆盖范围 | 覆盖 |
| 极性 | 带有 | 产品子类型 | Headers |
| 输出配置 | Through Hole | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
