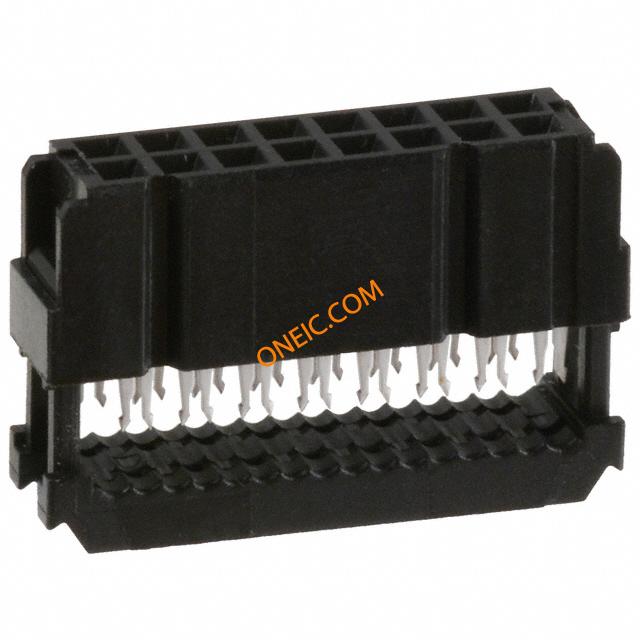

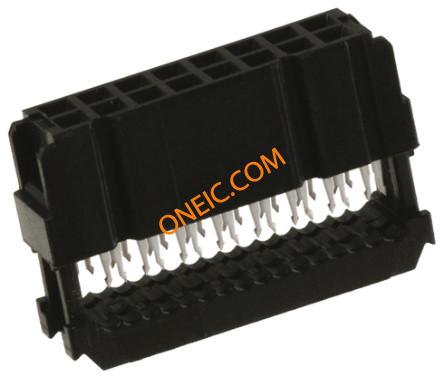

1658620-3

点击放大查看

1658620-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 16POS 15 GOLD Connector,Receptacle,Novo,16,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 16 NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM Connector,Receptacle;Novo;16;Gold(15);Tin-Lead;0.100in.x0.100in. 16 NOVO MIL 15DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1080

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series接触电阻15 mohm
最大额定电流1A最小供电电压250VAC

机械参数

颜色Black深度6.09 mm
间距2.54 mm高度15.97 mm
长度0.98in重量0.003
包装方式Tube导线类型Ribbon Cable
出线方向Without导线线规26-28 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket极化Military
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型NOVO接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
安装样式Cable排数2
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度24.89 mm安装特性Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数16接触件端接:IDC / IDT
位数16中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH, NOVO
产品特性Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
应用细节Wire-to-Board

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf
在线文档
1658620-3?RQPN=1658620-3

相关型号

5103308-3

5103308-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 16P 2 ROW HEADER LP Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRT 16WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;16;0.100x0.100in.;1A Pin header DIN 41651 16P, 5103308-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 16P VERT BLACK

¥4.8328
详情
5102153-3

5102153-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 16 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM Header;UniversalEjectionPinHeader;16;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 16P VERT

¥4.9728
详情
1761607-6

1761607-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 16POS Headers & Wire Housings 100X100 HDR 2X008P R/A LOW PROFILE Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P RA LG LAT BLK

¥14.6880
详情
5102160-3

5102160-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Pin header DIN 41651 16P, 5102160-3, TE Connectivity A/L UNIV HDR 16P RA

¥8.5680
详情
5103310-3

5103310-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X008P R/A LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;16;Gold A/L LOW PRO HDR 16P RA BLACK

¥4.9640
详情
5103311-3

5103311-3

te connectivity / amp

Conn Shrouded Header PIN 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,AMP-LATCH,16POS,2.54X2.54,RIGHTANGLE,LOWPROFILE,PCB,BLAC Pin header DIN 41651 16P, 5103311-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 16P RA BLACK

¥6.1635
详情
5499910-3

5499910-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD TE Connectivity 5499910 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 16 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P VERT SHT LAT

¥9.5200
详情
2-1761603-6

2-1761603-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 16 POS VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 16WAY HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:16; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P VERT BLUE

¥9.0600
详情
2-5499345-3

2-5499345-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 16POS R/A GOLD Headers & Wire Housings A/L UNIV HDR 16P RA SHT LAT BLUE A/L UNIV HDR 16P RA SHT LAT BLUE A/L UNIV HDR 16P RA SHT LAT BLUE Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥9.9974
详情
5103309-3

5103309-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR VERT DOUBLE 16P low profile Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,AMP-LATCH,16POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 16P, 5103309-3, TE Connectivity A/L LOW PRO HDR 16P VERT BLACK

¥5.4631
详情
2-1761679-6

2-1761679-6

te connectivity / amp

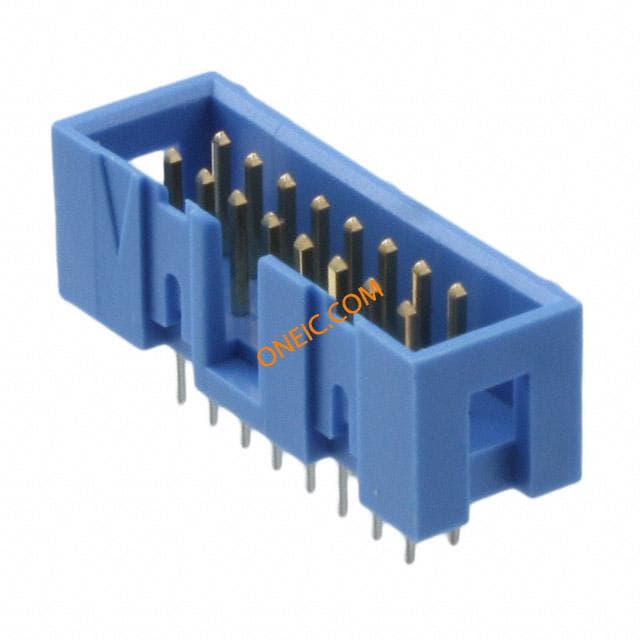

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO 16PS VERT GOLD Headers & Wire Housings HDR 16P VERT BLUE IDC LOW PRO Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile16 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P VERT BLUE

¥7.6840
详情
2-5499141-3

2-5499141-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 16POS R/A POLAR GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 16P RA BLUE LARGE LATCH Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 16waymaler/amountsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P RA LG LAT BLUE

¥8.8400
详情
1761606-6

1761606-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 16POS TE Connectivity 1761606 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X008P VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P VERT LG LAT BLK

¥18.1200
详情
5102155-3

5102155-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X008P VERT A/L UNIV HDR 16P VERT A/L UNIV HDR 16P VERT Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥5.5332
详情
5102154-3

5102154-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile16 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL Pin header DIN 41651 16P, 5102154-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 16P VERT

¥4.9028
详情
5102159-3

5102159-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 15AU R/A W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;16;0.100x0.100in.;RightAngle(PCB) TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P RA

¥5.3230
详情
5104338-3

5104338-3

te connectivity / amp

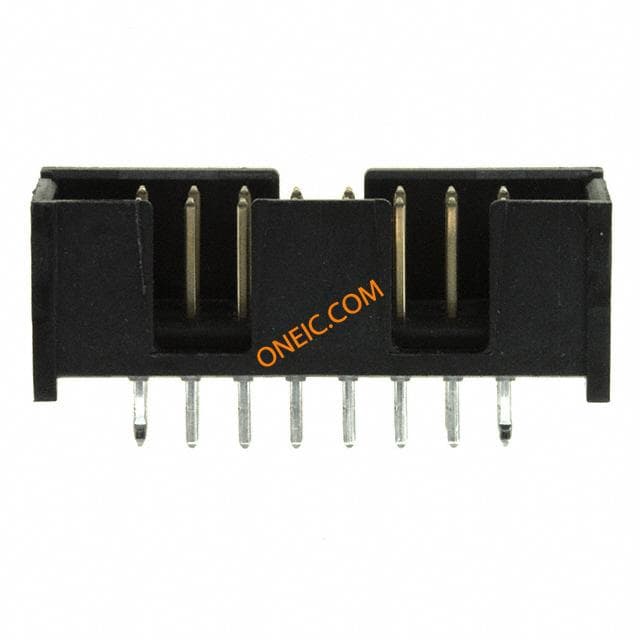

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD Headers & Wire Housings 100X100 HDR 2X008P VRT LOW PRO Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 16P VERT HT
