5102159-3

点击放大查看

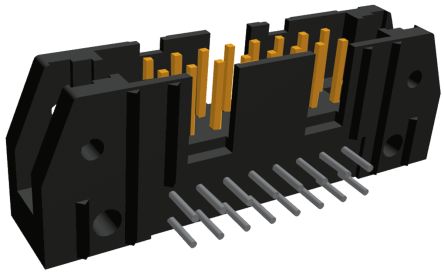

5102159-3

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 15AU R/A W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;16;0.100x0.100in.;RightAngle(PCB) TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P RA
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量70

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V 交流供电电压250
输入电阻1000 – 5000连接器阻抗弹出锁闩
最大额定电流1/Contact A最小供电电压250VAC

机械参数

颜色Black深度13.94 mm
间距2.54 mm高度8.53 mm
长度39.62 mm [ 1.56 in ]底座类型不带
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角方向直角
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin极化Center, Dual Polarizing Bar, Military
第二连接器Without触点形状Square
外壳颜色Black安装类型Right Angle
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel|Gold Over Nickel
安装样式Through Hole排数2
封装形式4-Sided外壳材料（壳体）4 面
驱动力不带电路板厚度1.57 [0.062]
插入件材料磷青铜外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度39.62 mm包装数量70
面板安装类型通孔尺寸/外形0.64 [.025]
端接排数焊接端接样式Through Hole
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
配接方向With触点数16
位数16兼容外壳尺寸（如TM-700等）AMP 锁闩母端
触头长度-柱信号（数据）安装孔直径带有
中心触点材料2.54 x 2.54 [.100 x .100]接触件表面处理 - 配合锡
接触长度 - 配合0.240" (6.10mm)端子柱长度2.79 [0.110]
接触镀层厚度15µin (0.38µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH覆盖范围覆盖
极性带有产品子类型Headers
其他规格Without加载位置数All

环境参数

温度额定值Standard工作温度-65C to 105C
封装热阻1.57 mm [ .062 in ]

文档与媒体

PDF 文档
1599153.pdf
