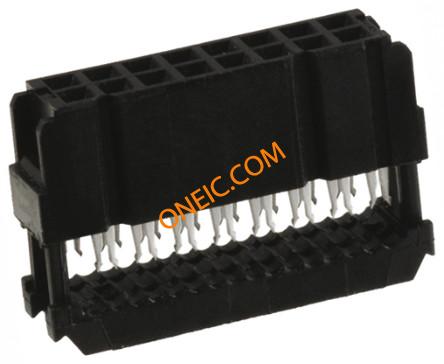

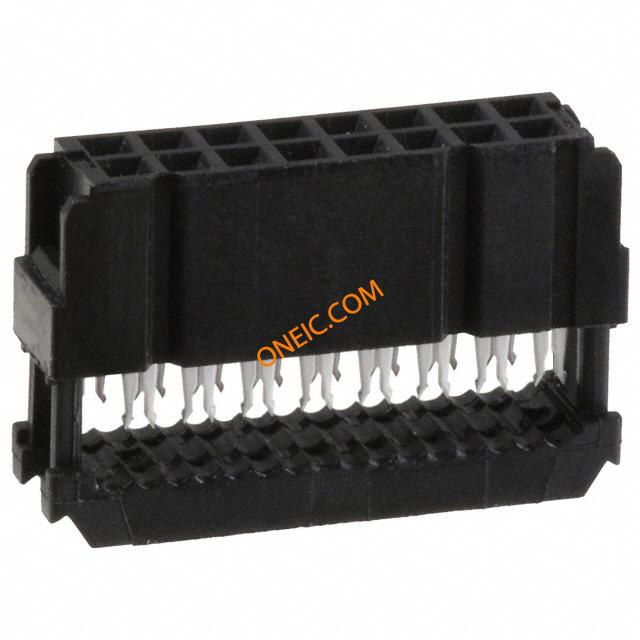

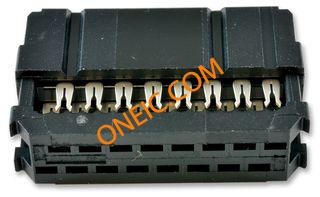

1658623-3

点击放大查看

1658623-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 16POS GOLD Connector,Receptacle,Novo,16,Gold(30) Connector; Receptacle; Novo; 16; Gold (30); Tin-Lead; 0.100 in. x 0.100 in. Headers & Wire Housings .1CL IDC REC 2X08P MIL 30AU Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM Connector,Receptacle;Novo;16;Gold(30);Tin-Lead;0.100in.x0.100in. Amp-Latch 16 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle TE Connectivity AMP-LATCH Novo 系列 2行 16路 2.54mm节距 母 IDC 连接器 , 电缆安装 16 NOVO MIL 30DP, LEAD FREE
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1080

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series最大额定电流1A

机械参数

颜色Black间距2.54 mm
长度0.98in重量0.002
包装方式Bulk导线类型Ribbon Cable
出线方向Without导线线规26-28 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket极化Military
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型NOVO接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
安装样式Cable排数2
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数16
接触件端接:IDC / IDT位数16
中心触点材料2.54 x 2.54 [.100 x .100]接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别RCP系列AMP-LATCH, NOVO
产品特性Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
应用细节Wire-to-Board

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf
