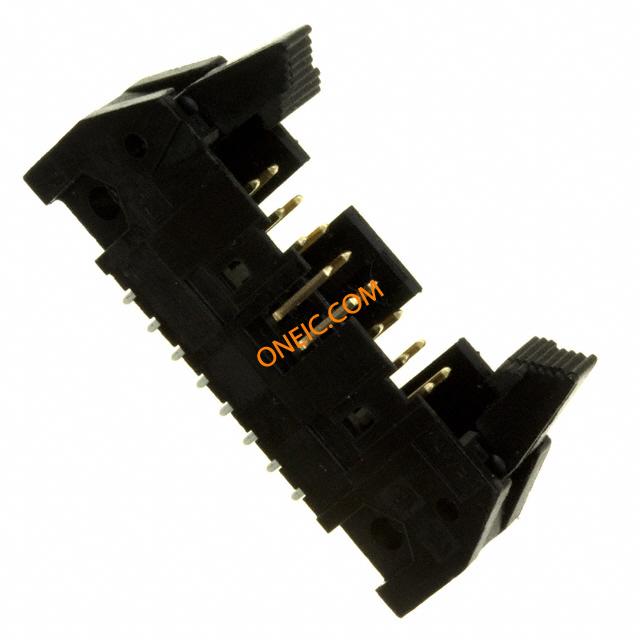

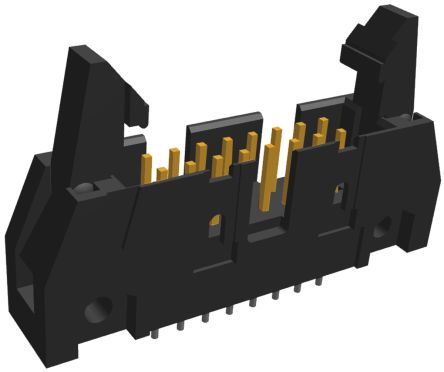

5499160-3

点击放大查看

5499160-3

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 30AU W/SHORT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile16 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P VERT SHT LAT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量56

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V 交流开关功能Ejection
供电电压250输入电阻5000
连接器阻抗锁闩, 锁闩最大额定电流1/Contact A
最小供电电压250VAC连接器类型 - 电压输入方柱

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度23.09 mm
长度39.62 mm [ 1.56 in ]底座类型不带
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel|Gold Over Nickel
紧固类型Latch Lock/Eject Hooks安装样式Through Hole
排数2封装形式4-Sided
外壳材料（壳体）4 面驱动力带有
电路板厚度1.57 [0.062]插入件材料黄铜，磷青铜
锁定特性Latch外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度39.62 mm包装数量24
面板安装类型通孔主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
外径.64 mm [ .025 in ]配接方向With
触点数16位数16
兼容外壳尺寸（如TM-700等）与母端插接触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合锡
接触长度 - 配合0.240" (6.10mm)端子柱长度2.79 [0.110]
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH覆盖范围覆盖
极性带有制造商全称AMP-LATCH
产品子类型Headers其他规格With
加载位置数All

环境参数

温度额定值Standard工作温度-65C to 105C
封装热阻1.57 mm [ .062 in ]

文档与媒体

PDF 文档
1599153.pdf
