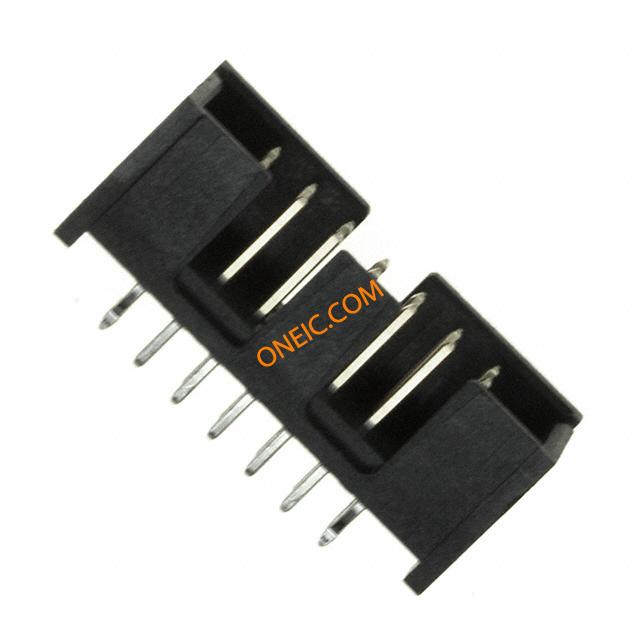

5104338-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 开关功能 | Unlatched | 供电电压 | 250 |
| 输入电阻 | 5000 | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | 低功耗链路范围 | 带有 |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | 方柱 |
机械参数
| 颜色 | Gray | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 高度 | 9.85 mm |
| 长度 | 25.4 mm [ 1 in ] | 底座类型 | 带有 |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] |
| 引脚样式 | 直角 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | 4 面 |
| 驱动力 | 不带 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 25.4 mm | 安装特性 | 固定焊尾 |
| 包装数量 | 30 | 面板安装类型 | 通孔 |
| 端接样式 | Solder Tail | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 14 |
| 位数 | 14 | 兼容外壳尺寸（如TM-700等） | 与母端插接 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.05 mm | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | 带有 |
| 产品子类型 | Headers - Shrouded | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
