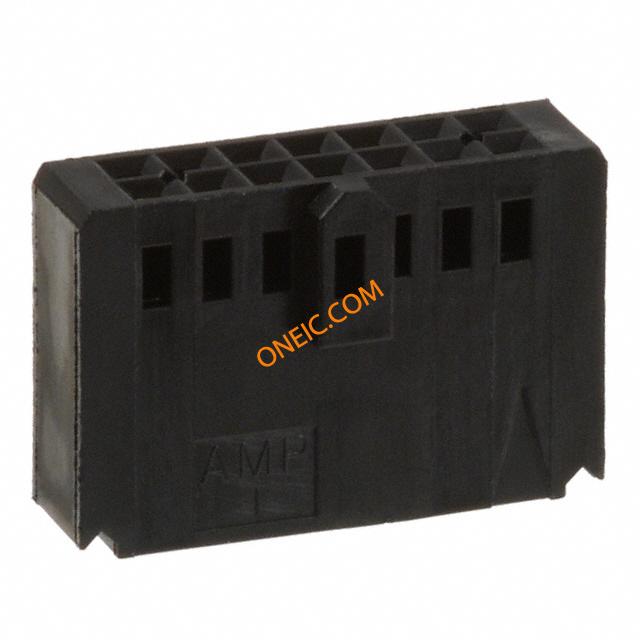

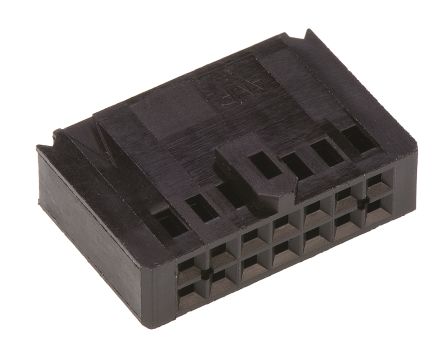

102387-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings CNTR PLRZD HG 14 DBL .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL 2.54mm,housing,14W,Mod IV,DR,snap in Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 14POS, 2.54MM Housing,Connector;ModIV;Dual;14;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 14 Double row / straight / with polarization AMPMODU MOD IV, 102387-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 14 路 直 母 电缆安装 PCB 壳体 14 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 认证机构 | CSA,UL |
电气参数
| 额定电压 | 250 VAC | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000Megohms |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 7.23mm |
| 高度 | 7.23 mm | 长度 | 22.35mm |
| 重量 | 0.009 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 端接方式 | 12Milliohms | 触头类型 | Female Socket |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Snap In |
| 排数 | 2 | 壳体材料 | Thermoplastic |
| 总长度 | 22.35 mm | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | No | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品特性 | Polarizing Key | 制造商全称 | AMPMODU/MODIVSeries |
| 产品子类型 | Receptacles / Sockets - Housings | 矩阵（列×行） | 0.100x0.100in. |
| 适用产品/相关产品 | Centerline Double-Row Connector | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
