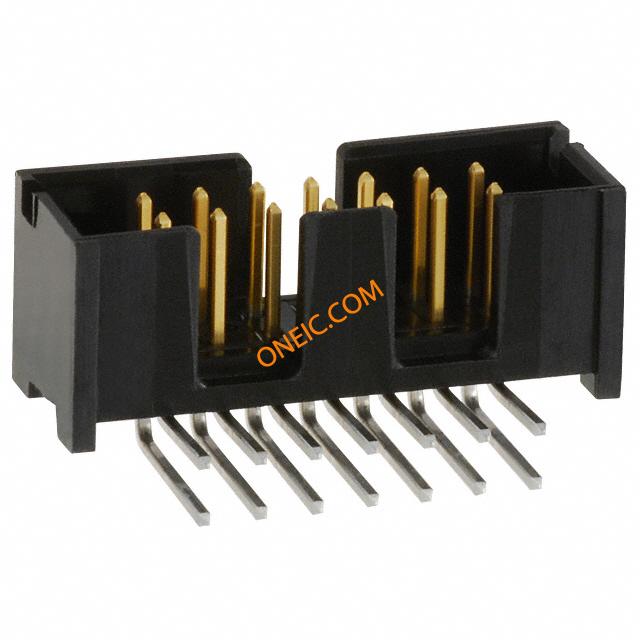

103310-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD Headers & Wire Housings 14P LO PRO HEADER Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, LO/PROHDR,014LOPROHDRRA15DP 014 LOPRO HDR RA 15DP |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 输入电阻 | 5000 | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | 连接器类型 - 电压输入 | 浸焊 |
机械参数
| 颜色 | Black | 深度 | 12.31 mm |
| 间距 | 2.54 mm | 高度 | 9.14 mm |
| 长度 | 25.4 | 底座类型 | 不带 |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 引脚样式 | 正方形 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 法兰特征 | 是 |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | 4 面 | 驱动力 | 不带 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 25.4 mm |
| 包装数量 | 100 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Through Hole | 第一连接器类型 | 插针接头 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 14 | 位数 | 14 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 钯镍打底镀薄金 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 15µin (0.38µm) |
| 外壳尺寸，连接器布局 | 3.81 mm [ .15 in ] | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | 带有 |
| 产品子类型 | Header Assemblies | DigiKey可编程 | 带有 |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准 | 工作温度 | - 65 C to + 105 C |
