103311-2

点击放大查看

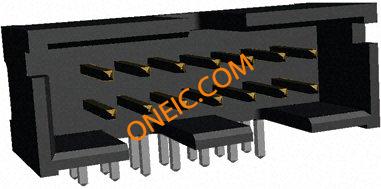

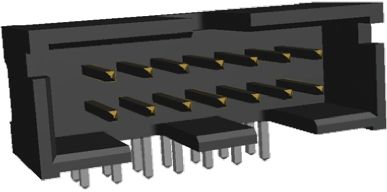

103311-2

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headerhoriz14way2.54mmAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 014 LOPRO HDR RA 30DP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量100

合规参数

RoHSLead free / RoHS non-compliant材料阻燃等级UL 94 V-0

电气参数

输入电阻5000最大额定电流1A
绝缘电阻5000 MOhms连接器类型 - 电压输入浸焊

机械参数

颜色Black深度10.04 mm
间距2.54 mm高度9.14 mm
长度25.4 mm [ 1 in ]底座类型不带
锁定类型不带包装方式Bulk
壳体颜色黑色引脚样式正方形
方向直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
外壳颜色Black安装类型Through Hole, Right Angle
连接器类型Header, Shrouded接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
法兰特征是安装样式Through Hole
排数2外壳材料（壳体）4 面
驱动力不带插入件材料铜合金
触头材料Copper Alloy壳体材料Thermoplastic
总长度25.4 mm包装数量100
面板安装类型通孔 - 焊接主要材料Connector
端接排数焊接端接样式Through Hole
第一连接器类型插针接头第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数14
位数14触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合钯镍打底镀薄金
接触长度 - 配合0.240" (6.10mm)端子柱长度3.43 mm
接触镀层厚度30µin (0.76µm)外壳尺寸，连接器布局3.81 mm [ .15 in ]

产品信息

类型Shrouded Header连接器性别HDR
系列AMP LATCH覆盖范围覆盖
极性带有制造商全称AMP-LATCH
产品子类型Header AssembliesDigiKey可编程带有
加载位置数All

环境参数

测试温度标准工作温度- 65 C to + 105 C

文档与媒体

在线文档
103311-2?RQPN=103311-2
在线文档
103311-2

相关型号

104483-9

104483-9

te connectivity / amp

Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 14 POS POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14 SHORT PT RCPT HSG DR .100CL
