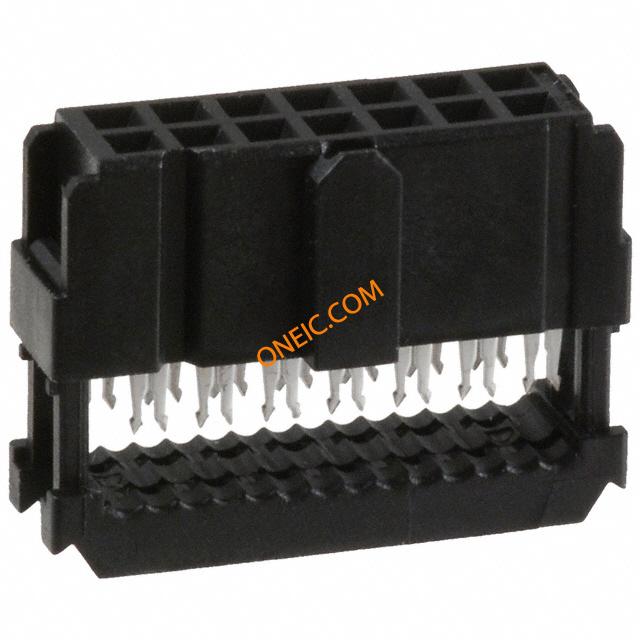

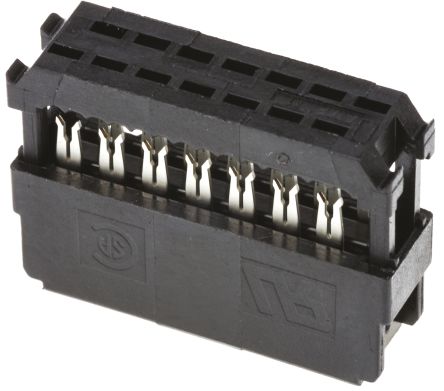

1658621-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 14POS W/POL 15 GOLD 14way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 14P NOVO Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 14WAY Connector,Receptacle;Novo;14;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:14; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 14P, 1658621-2, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 14路 2.54mm节距 直角 电缆安装 母 IDC 连接器 14 NOVO MIL/CTR 15DP,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 900 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Novo Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1A |
| 最小供电电压 | 250VAC | 触点额定电流 | :1A |
机械参数
| 颜色 | Black | 深度 | 7.49 mm |
| 间距 | 2.54 mm | 高度 | 15.97 mm |
| 重量 | 0.002 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | NOVO |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 22.35 mm | 安装特性 | Without |
| 包装数量 | 1 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 14 | 接触件端接 | :IDC / IDT |
| 位数 | 14 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 2x7 |
产品信息
| SPG | 1 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | AMP-LATCH NOVO |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 单元数量 | 1 |
| 带调制解调器控制 | Yes | 应用细节 | Wire-to-Board |
环境参数
| 插拔次数 | :75 | 工作温度 | +105°C |
文档与媒体
