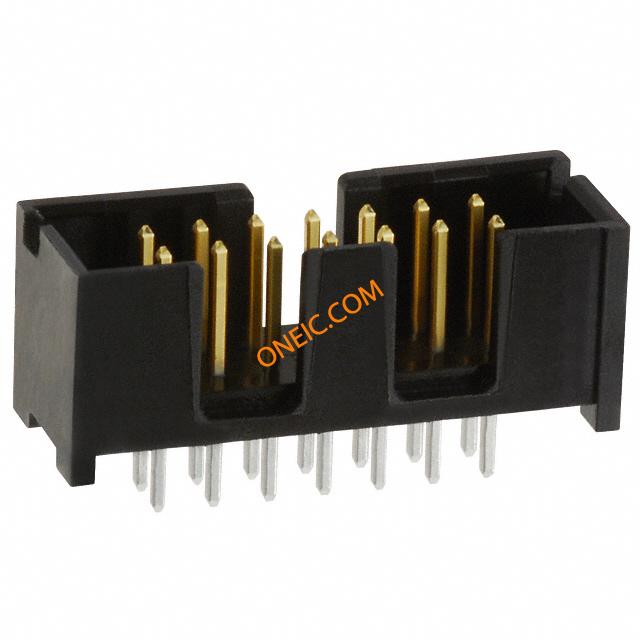

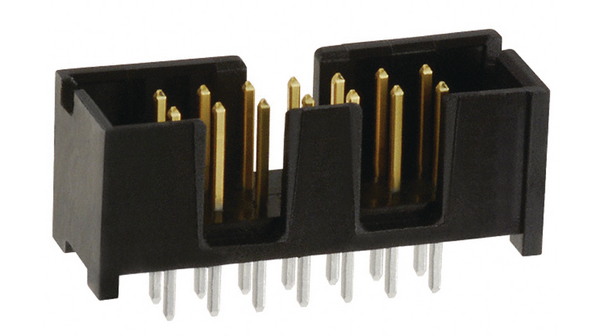

5103309-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, CONN, PCB HEADER 14 PINS HEADER,PIN,AMP-LATCH,14POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 14P, 5103309-2, TE Connectivity A/L LOW PRO HDR 14P VERT BLACK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 高度 | 9.78 mm |
| 重量 | 0.25 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 25.4 mm | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 14 |
| 接触件端接 | :Through Hole Vertical | 位数 | 14 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.05 mm |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
