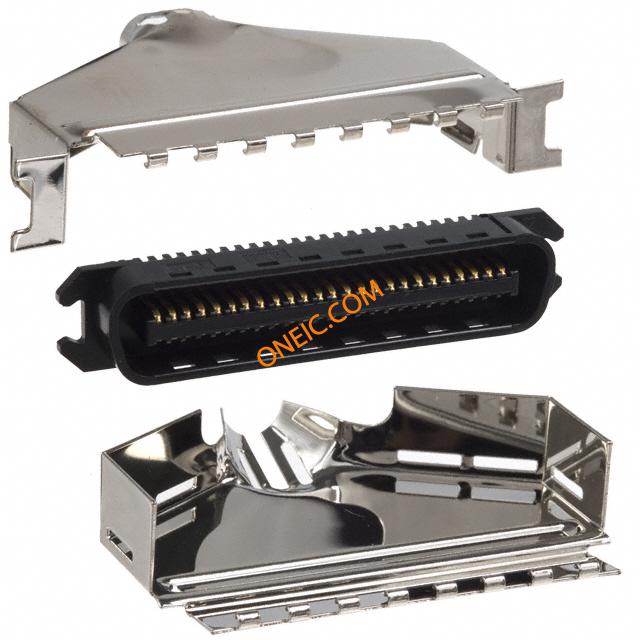

5-554953-1

点击放大查看

5-554953-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50Terminal 1Port Bulk 2.16 [.085] IDC Connectors CONN PLUG 50POS 26-28AWG 3PC
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间365 Days子类别Connector Interface
产品类别Connectors标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black间距2.16 mm
包装方式Bulk出线方向180°
电缆类型7 Strand铜缆类型E
屏蔽类型Yes端接方式IDC
第二连接器With安装类型Cable Mount
外壳镀层Bright Nickel连接器类型Plug
接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel排数2
连接器样式Center Strip Contacts锁定特性Bail Lock
外形（宽 x 高）Standard屏蔽材料Carbon Steel
触头材料Copper Alloy壳体材料Thermoplastic
包装数量Bulk面板安装类型Without
位数50接触镀层厚度30µin (0.76µm)
线规或范围 - mm²0.09² [28], 0.10² [27], 0.14² [26]电缆外径（最小）8.89 – 15.88 [0.350 – 0.625]

产品信息

类型IEEE 488连接器性别PL
产品特性Bail Lock, Shielded制造商全称AMP
产品子类型Connector Kit

环境参数

保护功能Without

文档与媒体

在线文档
TE.Connect?C=1&LG=1&I=13&PN=5-554953-1&M=BYPN&Search=Search
在线文档
5-554953-1?RQPN=5-554953-1
