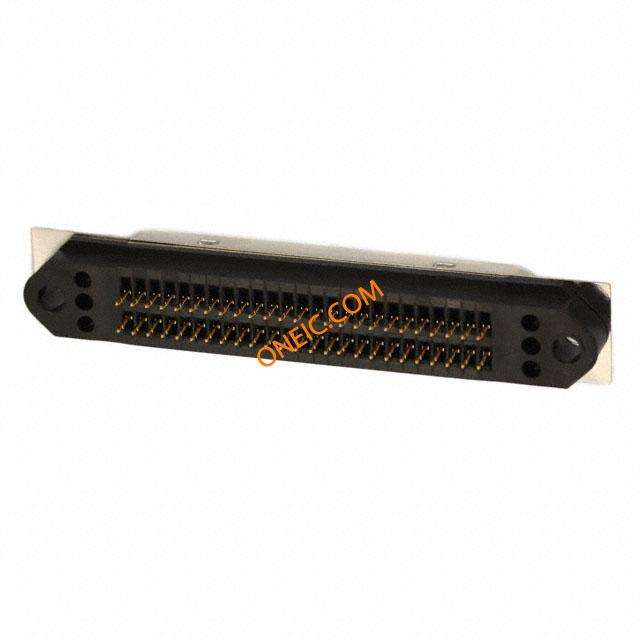

1116551-1

点击放大查看

1116551-1

制造商
TE Connectivity Ltd.
描述Conn Wire to Board F 50 POS ST Thru-Hole 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 50POS .085 VERT Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间365 Days其他名称11165511
子类别Connector Interface标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

颜色Natural螺钉尺寸4-40
方向Standard屏蔽类型Yes
端接方式Press-Fit第二连接器With
安装类型No外壳镀层Bright Nickel
连接器类型Receptacle接触镀层Gold Over Nickel
法兰特征Hollow, Unthreaded安装样式Vertical
排数2连接器样式Outer Shroud Contacts
锁定特性Screwlocks外形（宽 x 高）Standard
屏蔽材料Carbon Steel触头材料Copper Alloy
壳体材料Polyester面板安装类型Rear Mount
触点数50 POS位数50
安装孔直径3.81 [.150]端子柱长度4.06 [0.160]
接触镀层厚度30µin (0.76µm)

产品信息

类型Wire to Board连接器性别F
产品特性Shielded制造商全称AMP
其他规格No应用细节ACTION PIN (Solderless)

文档与媒体

在线文档
TE.Connect?C=1&LG=1&I=13&PN=1116551-1&M=BYPN&Search=Search
在线文档
1116551-1?RQPN=1116551-1
