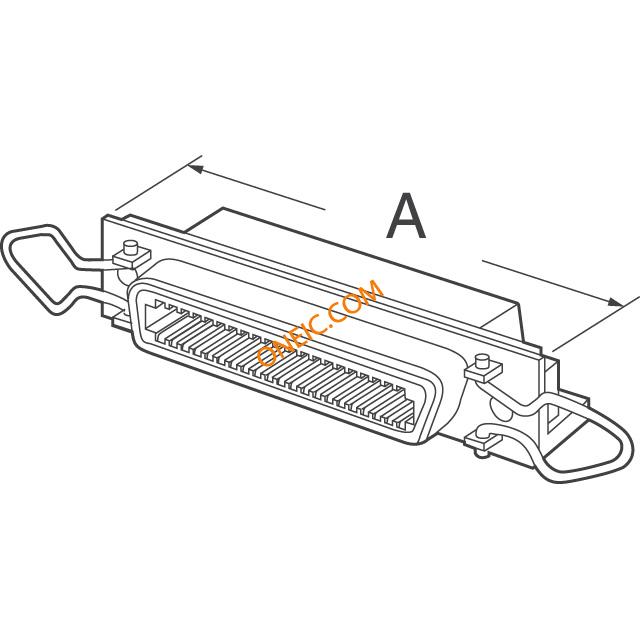

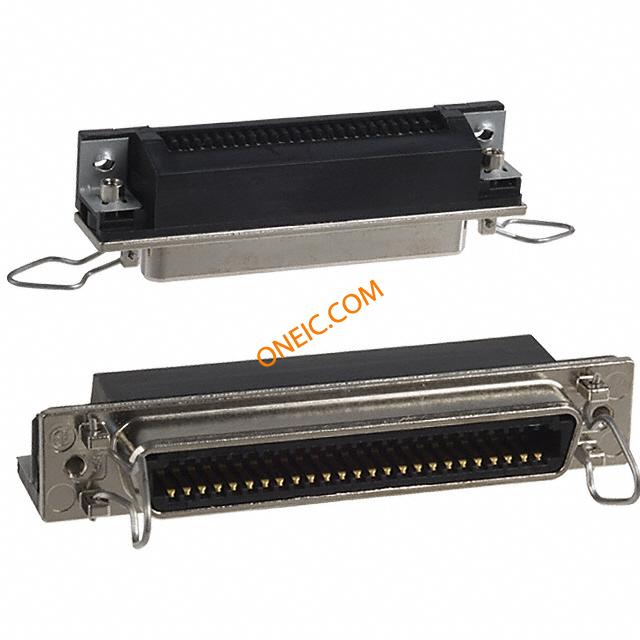

5554901-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 F 50 POS Solder RA SMD 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG Headers & Wire Housings 50 RA SHLD RCPT ASSY Conn IEEE 488 F 50 POS Solder RA SMD 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics RCPT ASSY,SHLD,50 POSN,RTANG |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector Interface |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 释放锁 | 连接器类型 - 电压输入 | Receptacle |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 表面处理 | Passivated | 镀层 | Zinc |
| 材料（通用） | Stainless Steel | 包装方式 | Tray |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 螺钉尺寸 | 4-40 | 方向 | Standard |
| 屏蔽类型 | Yes | 本体尺寸 | 1.57 mm [ .062 in ] |
| 端接方式 | Solder | 外壳表面处理 | Bright |
| 第二连接器 | With | 安装类型 | Surface Mount |
| 外壳镀层 | Bright Nickel over Copper | 端子尺寸 | .125 |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Right Angle |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | 铜合金 | 锁定特性 | Bail Lock |
| 磁芯材质 | Thermoplastic | 面板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Die Cast Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 刀片材料 | 热塑塑料 | 框架材料 | Thermoplastic |
| 安装特性 | 安装孔 | 包装数量 | 30 |
| 面板安装类型 | Rear Mount | 触点数 | 50 |
| 位数 | 50 | 接触件表面处理 - 配合 | 钝化 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | F |
| 产品特性 | Bail Lock, Shielded | 方向 | 标准 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | Connectors | 其他规格 | Yes |
| 适用产品/相关产品 | 554901-1 | ||
