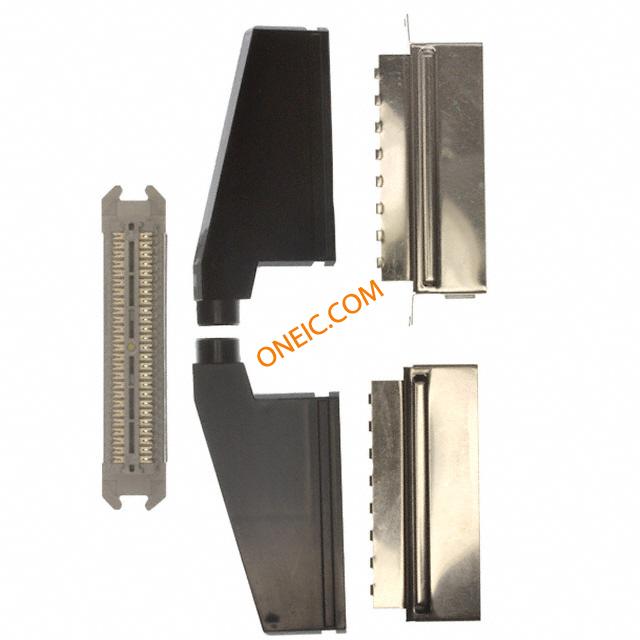

点击放大查看
5-555012-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Interface PL 50 POS IDT RA Cable Mount 50 Terminal 1 Port 2.16 [.085] IDC Connectors PLUG KIT POST MLDG E SLOT 5PC PT Headers & Wire Housings PLUG KIT 50 POS E SLOT 2.16 [.085] IDC Connectors Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsPlugShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics PLUG KIT, POST MLDG, E SLOT |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector Interface |
| 标准包装规格 | 1 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 连接器阻抗 | 释放锁 | ||
机械参数
| 颜色 | 灰色 | 间距 | 2.16 mm [ .085 in ] |
| 包装方式 | 包装 | 屏蔽 | 是 |
| 电缆类型 | 分离式导线, 环状护套电缆 | 导线线规 | .045 |
| 端接方式 | IDC | 外壳表面处理 | 不带 |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | 标准 | 排数 | 2 |
| 线束直径 | 9.4 mm [ .37 in ] | 连接器样式 | Center Strip Contacts |
| 插入件材料 | ABS Molding Compound | 屏蔽材料 | 碳钢 |
| 壳体材料 | 聚苯醚 | 包装数量 | 500 |
| 面板安装类型 | 不带 | 线规 - 端部 | 26, 27 |
| 触点数 | 50 | 位数 | 50 |
| 外壳材料及表面处理 | 黄色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - mm² | .09, .1, .14 | 线缆外径（最大） | 1.14 mm [ .045 in ] |
产品信息
| 类型 | Interface | 连接器性别 | PL |
| 产品特性 | Assembly Kit, Backshell, Bail Lock, Shielded | 套件类型 | Connector Kit |
| 产品子类型 | 连接器 | ||
