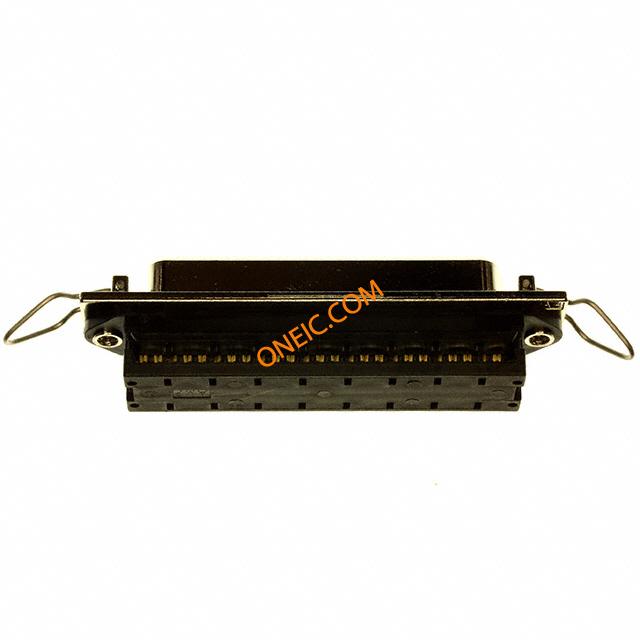

554902-1

点击放大查看

554902-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port I/O Connectors RECPT 50P PANEL MNT bail lock 4-40 2.16 [.085] IDC Connectors EMI RCPT ASSY,50 POSN,SHLD Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,EMI,50POSITION,SHIELDED,WITHPANELATTACHMENT TE Connectivity CHAMP 系列 50 路 1.27mm节距 直 电缆安装 母 SCSI 连接器, IDC, 螺钉
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间98 Days子类别Connector Interface
产品类别I/O Connectors标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗释放锁

机械参数

颜色Black深度16mm
间距2.16 mm宽度21.09mm
长度84.33mm包装方式Bulk
屏蔽是壳体颜色黑色
电缆类型Ribbon Cable螺钉尺寸4-40
方向直排间距1.27 mm [ .05 in ]
屏蔽类型Without端接方式IDC
第二连接器With安装类型Cable Mount
外壳镀层Nickel连接器类型Receptacle
接触镀层Gold法兰特征Board Side (4-40)
安装样式Cable排数2
外壳材料（壳体）聚苯醚绑带材料Thermoplastic
连接器样式Outer Shroud Contacts插入件材料铜合金
锁定特性Bail Lock外形（宽 x 高）Standard
屏蔽材料Die Cast Metal触头材料Phosphor Bronze
线缆终端Assembled壳体材料Polyphenylene Oxide (PPO)
包装数量Preassembled面板安装类型With
端接排数IDC端接样式IDC
触点数50位数50
排距 - 配合1.27 [0.050]接触镀层厚度30µin (0.76µm)
线规或范围 - AWG30 – 26线规或范围 - mm².05 – .13

产品信息

类型IEEE 488连接器性别RCP
系列CHAMP产品特性IDC Connectors
制造商全称AMP产品子类型Connector
