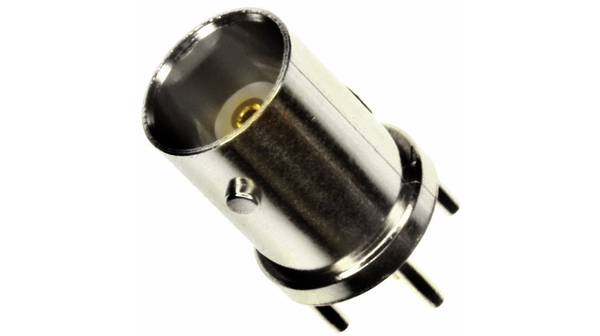

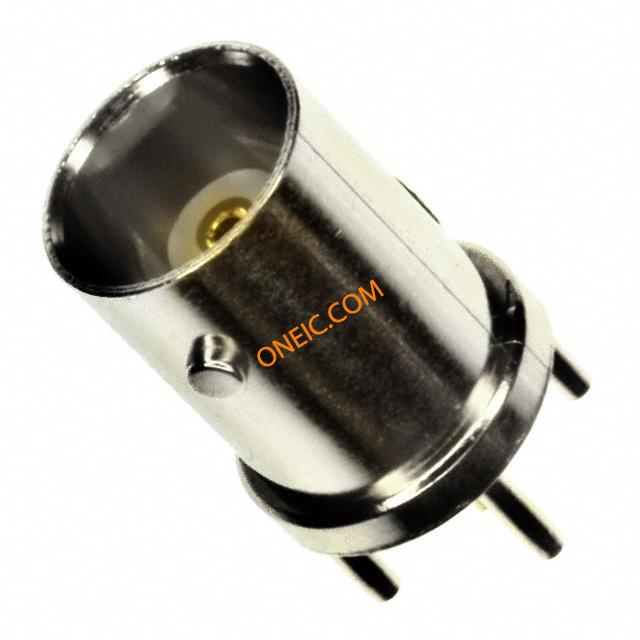

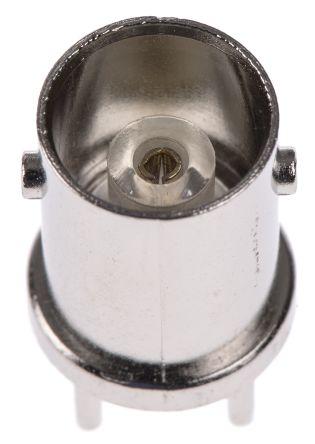

5-1634503-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC Ni-pl PCB straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt 50 Ohm Nickel 18.2 Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To Printed Circuit BoardPCB Mount Angle = VerticalSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, STRAIGHT, PCB, 50R BNCSTRPCBSKT50OHMNICKELPLTD18.2 Socket; BNC; female; straight; 50Ω; THT; on PCBs; gold plated BNC appliance socket 50 Ohm, 5-1634503-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Str PCB Skt 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :50R | ||
机械参数
| 尺寸 | Standard | 深度 | 11 mm |
| 重量 | 0.01 | 直径 | 11 mm |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Through Hole |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 总长度 | 13.7 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | Polymethylpentene |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :PCB |
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | HoldDownPosts | 极性 | Normal |
| 连接类型 | PCB | 单元数量 | 1 |
| 射频系列/标准 | 1634503 | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号

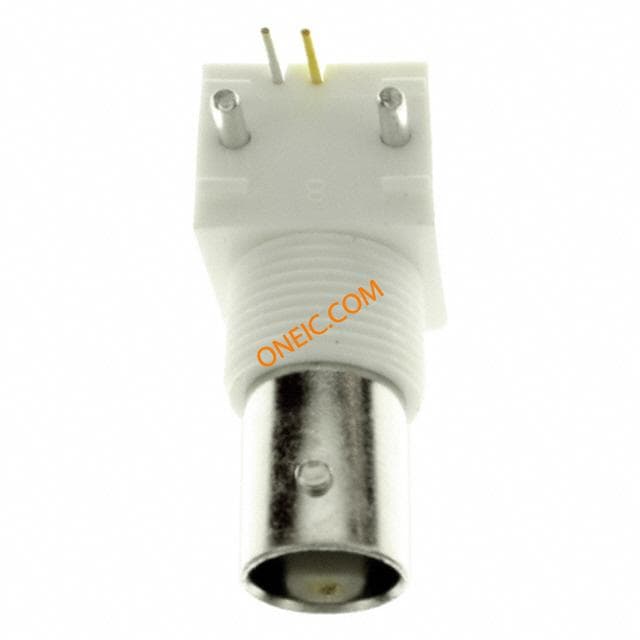

1-1337543-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A PCB Skt White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC, JACK, PCB, R/A, 50OHM, WHITE BNCINSR/APCBSKT50OHMWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyester BNC appliance socket, right angle 50 Ohm, 1-1337543-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm White

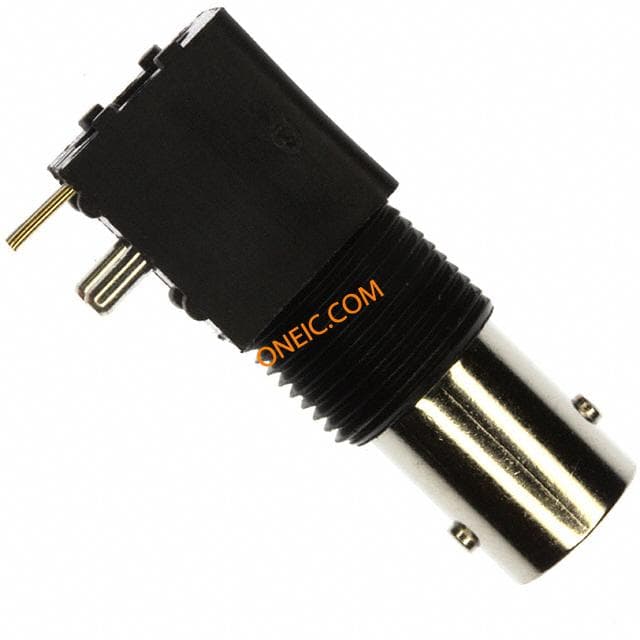

1-1634613-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC black low profile PCB skt, r/a,50ohm RF Connectors / Coaxial Connectors PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSLPPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm Black
1-1337541-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual RF Connectors Str PCB Skt MP White 50Ohm BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC insulated PCB socket, white, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, WHITE BNCINSSTRPCBSKT50OHMMPWHITE Socket; BNC; female; straight; 50Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm White
1-1337494-0
te connectivity / amp

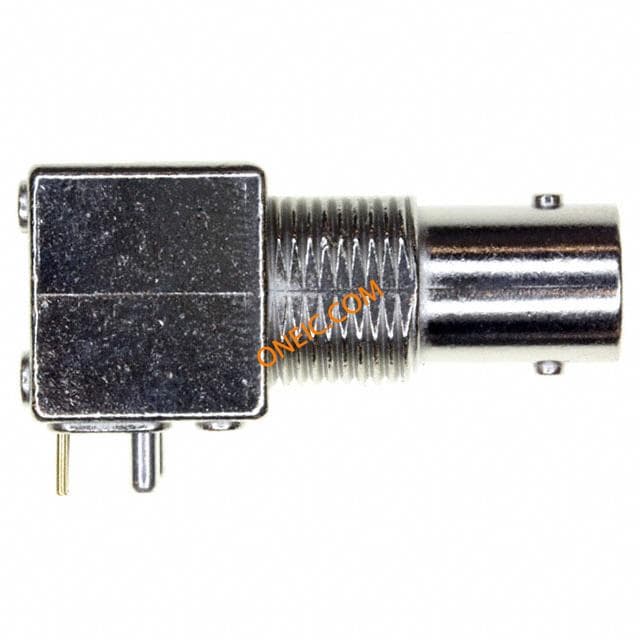

Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd
1-1634505-0
te connectivity / amp

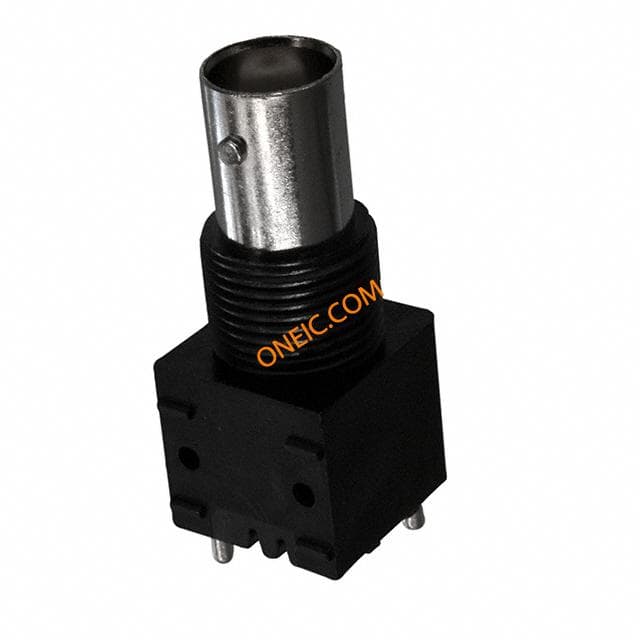

Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black

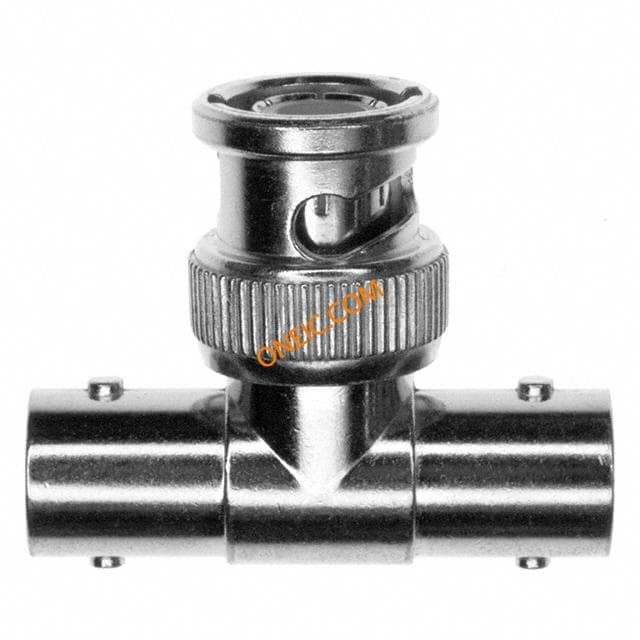

5-1634532-1
te connectivity / amp
Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual BNC RF Connectors CONN T-ADAPTOR BNC J-P-J 50 OHM BNC Ni-pl T adaptor RF Adapters - Tee T Adpt JK-PL-JK NKL GLD 50Ohm Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC, T, JACK-PLUG-JACK, 50OHM BNCTADPTJPJ50OHMNICKELGOLDPLTD BNC T-adapter, female/male/female 50 Ohm, 5-1634532-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插头 到 BNC 2 x 插座 BNC T Adpt JPJ 50Ohm Nickel Gold Pltd

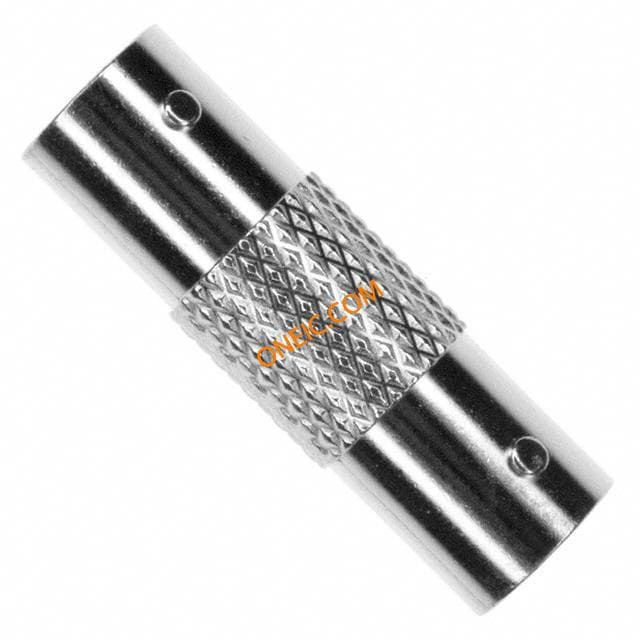

5-1634534-1
te connectivity / amp
Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual BNC RF Connectors CONN ADPT JACK-JACK BNC 50 OHM BNC Ni-pl jack to jack adaptor, 50 ohm RF Adapters - In Series Str Adp JK-JK Nickel 50Ohm Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC JACK, BNC JACK, 50OHM BNCSTRADPJJ50OHMNICKELPLTD Coupler; BNC socket x2; straight; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 5-1634534-1, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Nickel Pltd
1-1337542-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white low profile PCB skt,r/a, 50ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP White Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, RA, SOLDER, 50OHM BNCINSLPPCBSKT50OHMMPWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm White

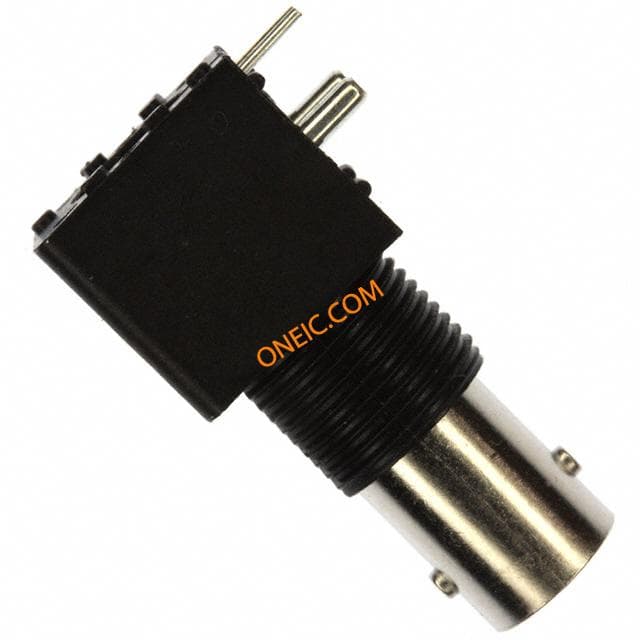

1-1634612-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC Ni-pl r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP Black Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, THT, R/A, 50OHM BNCINSPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm Black

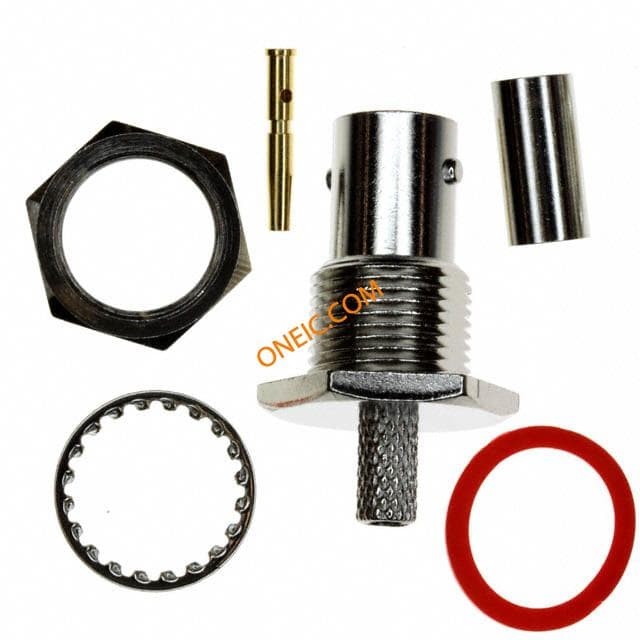

5-1634516-1
