点击放大查看

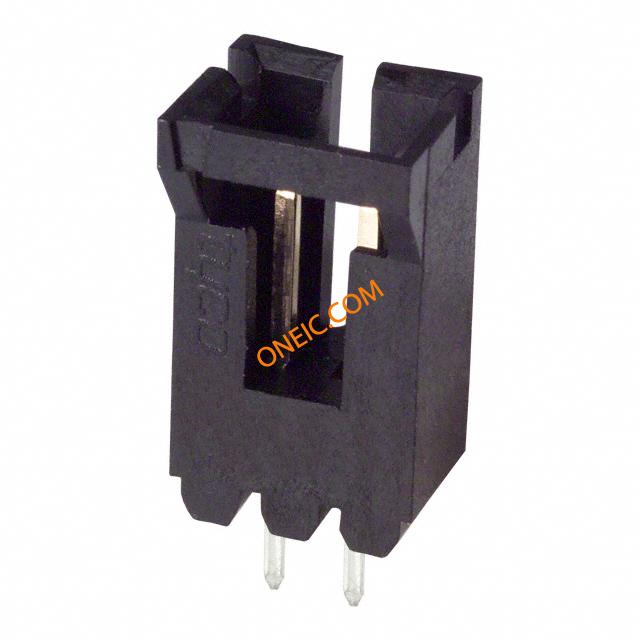

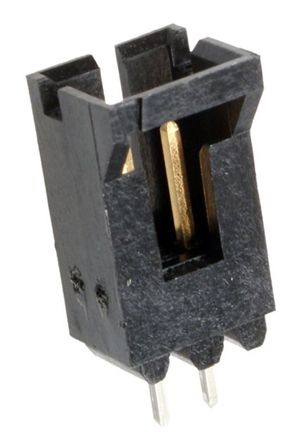

5-103735-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 2POS 30AU TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 2 Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm2 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM MTEHEADERASSY,02MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 开关功能 | Latched |
| 接触电阻 | 15 mohm | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 6.98 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 重量 | 0.000001 | 包装方式 | Tube |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 7.62 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MTE | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号
104257-1
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .1" POL UNLOAD 2 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 2P Conn Housing RCP 2 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 2WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:2; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 2 路 直 母 PCB 壳体 02 MTE RCPT HSG SR LATCH .100
103961-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 2POS .100 26-30 30GOLD Headers & Wire Housings 10X2 MTE RCPT SR LATCH .100CL 10X2 MTE RCPT SR LATCH .100CL
103957-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,10X2MTERCPTSRLATCH.100CL 10X2 MTE RCPT SR LATCH .100CL
5-103959-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 2POS .100 26-30 TIN Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10X2 MTE RCPT SR LATCH .100CL

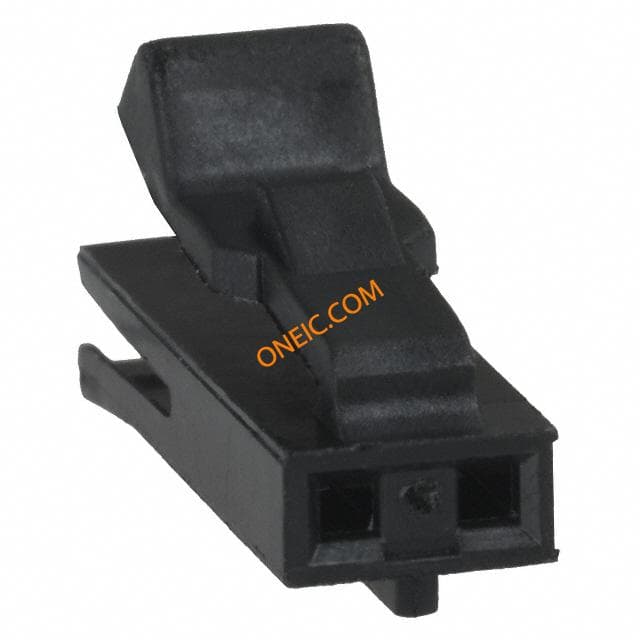

487526-1
