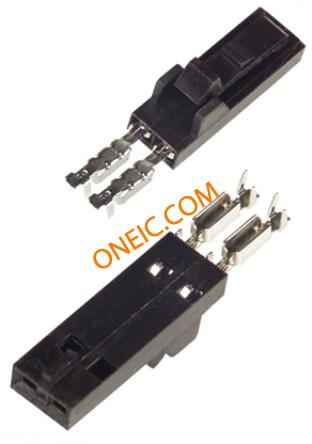

点击放大查看

5-103956-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 P0LAR TIN MTE RECP ASSY, 10X2 MTE RCPT SR LATCH Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 2Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM MTERECPASSY,10X2MTERCPTSRLATCH.100CL 10X2 MTE RCPT SR LATCH .100CL
分类	连接器解决方案板对板连接器板对板连接器

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	110	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU MTE Series	接触电阻	15 mohm
最大额定电流	3 A

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	重量	0.0001
包装方式	Tube	导线类型	Discrete or Ribbon Cable
导线线规	22-26 AWG	排间距	2.54 mm
端接方式	IDT	触头类型	Female Socket
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Tin Over Nickel
紧固类型	Latch Lock	安装样式	Wire
排数	1	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	总长度	50.8 mm
主要材料	InterconnectSystem	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	2	接触件端接	:IDC / IDT
位数	2	接触镀层厚度	100µin (2.54µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMPMODU/MTE	产品特性	Closed End
制造商全称	AMPMODU/MTESeries	产品子类型	Headers

环境参数

工作温度

- 65 C to + 105 C
