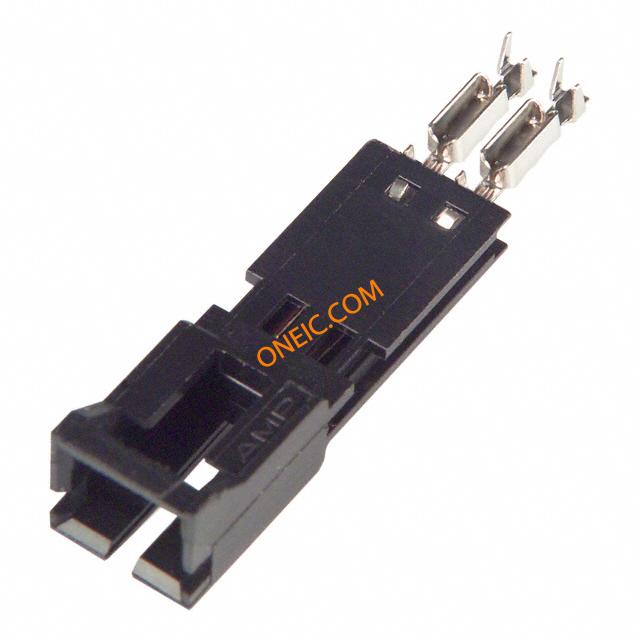

点击放大查看
103945-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 POLAR 15AU Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEPINASSY,8X2MTESHRDPINSRLATCH.100 8X2 MTE SHRD PIN SR LATCH .100 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 接触电阻 | 15 mohm |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3/Contact A | 保护额定电压（VPR） | 600 VAC |
机械参数
| 颜色 | Black | 深度 | 24.13 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 长度 | 59.9 mm [ 2.36 in ] | 锁定类型 | 锁闩 |
| 包装方式 | Tube | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 导线线规 | 22-26 AWG |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 1 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 7.49 mm |
| 包装数量 | 72 | 面板安装类型 | 不带 |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 端接样式 | 插针 | 触点数 | 2 |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 配合母端 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 带有 |
| 接触件镀层 - 插柱（配合端） | 亮光 | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | PIN | 产品特性 | Closed End |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | 连接器 |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65C to 105C |
